80 Ton 300KW Water Cooled Screw Chiller

80 Ton/300KW Water Cooled Screw Chiller

Tongwei is a leading China 80 Ton 300KW Water Cooled Screw Chiller manufacturers and suppliers. Water Cooled Screw Chiller is a type of refrigeration machine equipped with a semi-hermetic screw compressor and flooded evaporator for energy-efficient cooling operation.It uses recirculating water from a cooling tower in order to facilitate heat exchange.Once the water is processed from a source such as a cooling tower, river, pond, etc, it goes through the water-cooled condenser and cooling tower before it is emitted as cool air into the room or building.Compared to air cooled screw chillers, water cooled screw chillers typically offer higher cooling efficiency and lower noise levels.

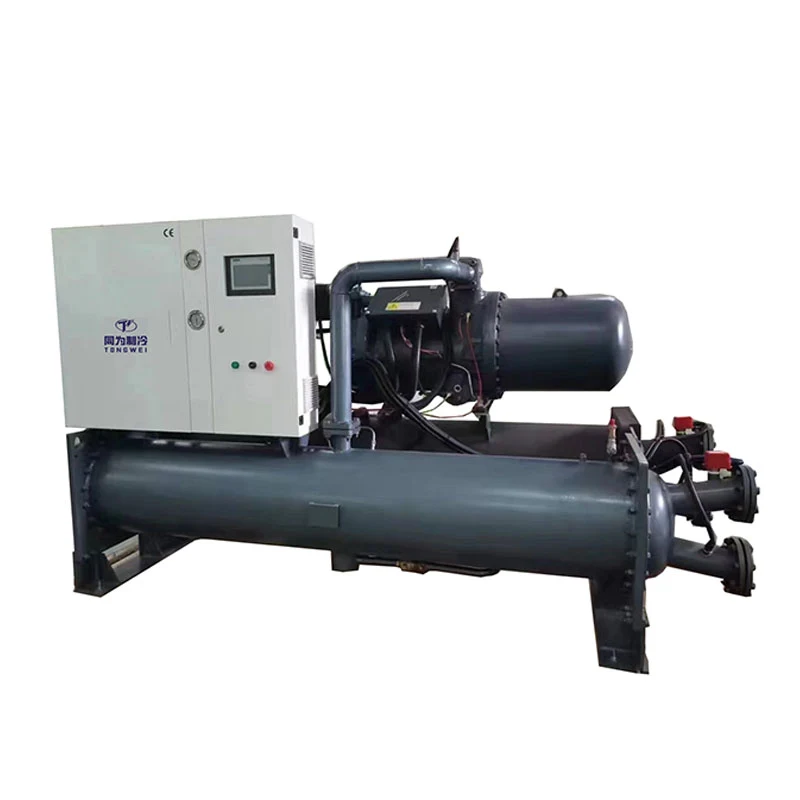

80 Ton water-cooled screw chiller model TW-300WSH,,which cooling capacity is 300KW or we call 90HP ,is equipped with one semi-hermetic hanbell screw compressor usingR407c, R22, R134a, , and R404a are all available depending on the screw chiller working condition, application requirements, and ambient temperature.

80 Ton industrial water cooled screw chiller is suitable for die casting, rubber, printing, plastic injection molding, beverage production, metal polishing, the pharmaceutical industries and other other industries.As a China professional chiller manufacturer and supplier ,we can provide a complete range of water-cooled screw chiller at a very reasonable price ,  with cooling capacity from 80KW to 2000KW and the chiller temperature control range is from +25℃ to -30℃.

80 Ton 300KW Water Cooled Screw Chiller Technical Specification MODEL:TW-300WSH

How Does An 80 Ton 300KW Water Cooled Screw Chiller Work?

80Ton Water Cooled Screw Chiller with Buffer Water Tank Outside Installation for Reference

Features of Water Cooled Screw Chiller

»The chiller adopts a semi-closed screw compressor. The compressor is with capacity control 0-25%-50%-75%-100%,which is automatically adjusted according to load changes and is more energy efficient.

»Water Cooled screw chiller uses high-efficiency shell and tube heat exchange to improve cooling efficiency. At the same time, in order to reduce the amount of lubricating oil entering the heat exchanger, the chiller increases the secondary oil content to minimize the amount of oil entering the heat exchanger and passes it through a specially designed injector. The oil return device guides the lubricating oil in the heat exchanger back to the compressor, improving the refrigeration efficiency of the unit and improving the reliability of the unit's operation.

»Water cooled screw chiller uses PLC temperature controller to monitor the overall operation of the unit. Its touch screen allows for adjustments and settings. Save energy consumption by regulating the temperature and pressure of the refrigerant entering the compressor.

»By a  water pump, a continuous stream of chilled water enters the chiller from the water tank. The water tank and cooling components of the water-cooled screw chiller are connected through water pipes.

»The Refrigerant Can be R22, R134A, R407C, R404a

What Are The Main Components Of 80 Ton 300KW Water Cooled Screw Chiller

4.1 Compressor

The compressor is the key mover in water Cooled screw Chiller because it produces pressure variations to stir the refrigerant around.

For 80 Ton chiller , which is with one unit Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Hanbell Screw Compressor

Bizter Screw Compressor

4.2 Evaporator

The evaporator is a crucial component of  water cooled chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. water Cooled screw Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator

5.3 Condenser

The condenser for water cooled screw chiller is water-cooed type shell and tube for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Water-cooled type Shell and Tube Condenser

5.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.

PLC Controller Panel

How I can Choose the Right Water Cooled Screw Chiller?

There are four important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

5.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;  1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

5.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

5.3 Refrigerant

R22, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

5.4 Evaporator Choose

Air cooled screw chiller generally uses one evaporators: just is shell and tube heat exchanger.Shell and tube type evaporator, which requires an additional water buffer tank to connect.

5.5 Buffer Water Tank Capacity Choose

Buffer tank’s capacity can be customized according to specific needs. It can buffer a larger heat load, store more chilled water .

304 Stainless Steel Water Tank

How Choose Right Water Cooling Tower For Your Water  Cooled Screw Chiller?

Water cooled chiller need connect with water cooling tower and water cooling pump outside for heat dissipation,so how to choose right water cooling tower model to your water cooled screw chiller ?

There are three important temperature factors you need to consider when choosing a cooling tower for water cooled chiller: inlet hot water temperature, outlet cold water temperature, and wet bulb temperature. The hot water temperature is that which enters the tower. The cold water temperature is that which leaves the water while the wet bulb temperature refers to the prevailing temperature of the geographic region where the tower is located.

Approach is the term used to refer to the difference between the temperatures of the water source as it enters the tower versus the temperature of the water once it has left the tower. This is a crucial determiner of the effective of the heat exchange process.

To choose the right cooling tower, mechanical efficiency should be given priority. This refers to the amount of fan power needed to circulate ambient air within the cooling tower. The range – or the difference in temperature between hot and cold water – is also crucial as it will impact energy usage.

so to find out how to choose a cooling water tower with sufficient cooling capacity, you should understand what circumstances require the use of a cooling tower. Please find the below water cooling tower is suitable for water cooled screw chiller :

Spare Part for Water Cooled Screw Chiller

What is the Difference Between Air Cooled Screw Chiller and an Water Cooled Screw Chiller

Air-cooled and water-cooled screw chillers are both types of chillers used for cooling applications in various industries.

The main difference between air cooled screw chiller and water cooled screw chiller is condenser :

The condenser of an Air-Cooled Screw Chiller is cooled by the ambient air,which the heat generated during the cooling process is dissipated into the surrounding air;

Water Cooled Screw Chiller with a shell and tube water-type condenser that is attached to a cooling tower and is typically used in medium and wide installations where water is available.So Water cooled screw chiller need connect with water cooling tower and water cooling pump outside , the installation is more trouble than air cooled screw chiller .

But if your ambient temperature is very high above 50℃,we suggest you use air cooled screw chiller ,as air cooled screw chiller may consume more energy to achieve the same cooling capacity due to the limitations of air as a heat exchange medium and water cooled screw chiller uses constant water source for more stable and efficient heat dissipation,so in high ambient temperature , water cooled screw chiller is more energy-efficient and better choice for your application .

Air Cooled Screw Chiller

Industrial Applications of 80 Ton 300KW Water Cooled Screw Chiller

water-cooled screw chillers are very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage.Water cooled screw chillers are also widely used in plastic industry,food industry ,chemical industry and Cement/ Concrete Cooling.

8.1 Plastic Industry

Water-cooled screw chillers are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extrude, and extrusion lines, blowing molding machines.

The function of using an water-cooled screw chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Water Cooled Screw Chiller For Plastic Industry

8.2 Food Industry

Water cooled chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Water Cooled Screw Chiller For Food Industry

8.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,air cooled screw chiller are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Water Cooled Screw Chiller For Chemical industry

8.4 Cement /Concrete Cooling

Cement production involves a series of chemical reactions that generate significant amounts of heat.Cement is usually mixed with water to from the material known as concrete whose temperature is to a great extent determined by the water used in the chemical combination of cement aggregates and water.

Shipping Way of Water Cooled Screw Chiller

As a professional water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your 80 Ton 300KW Water Cooled Screw Chiller supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.

▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.

▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
