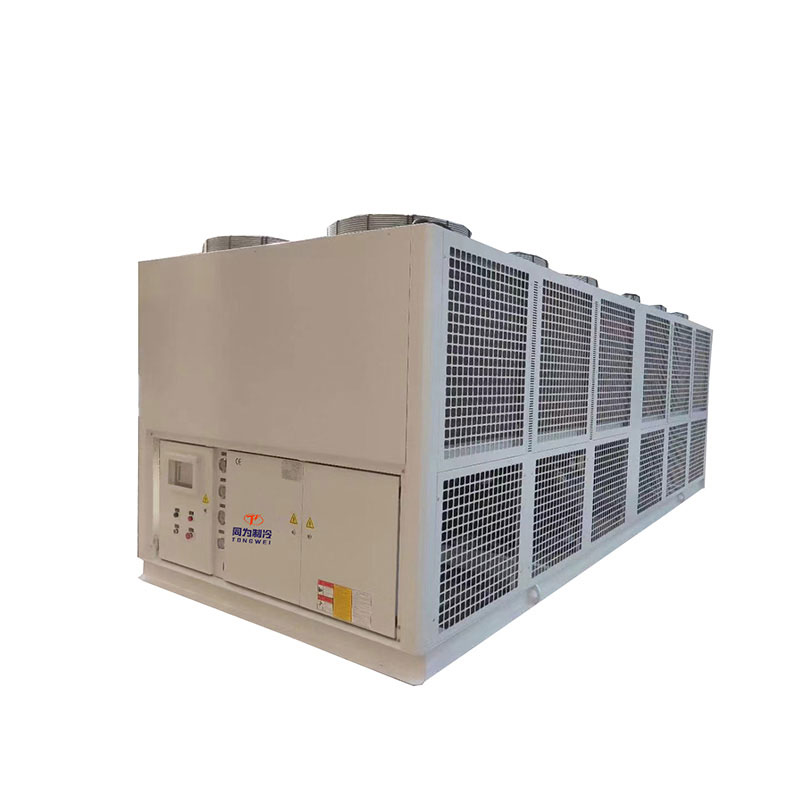

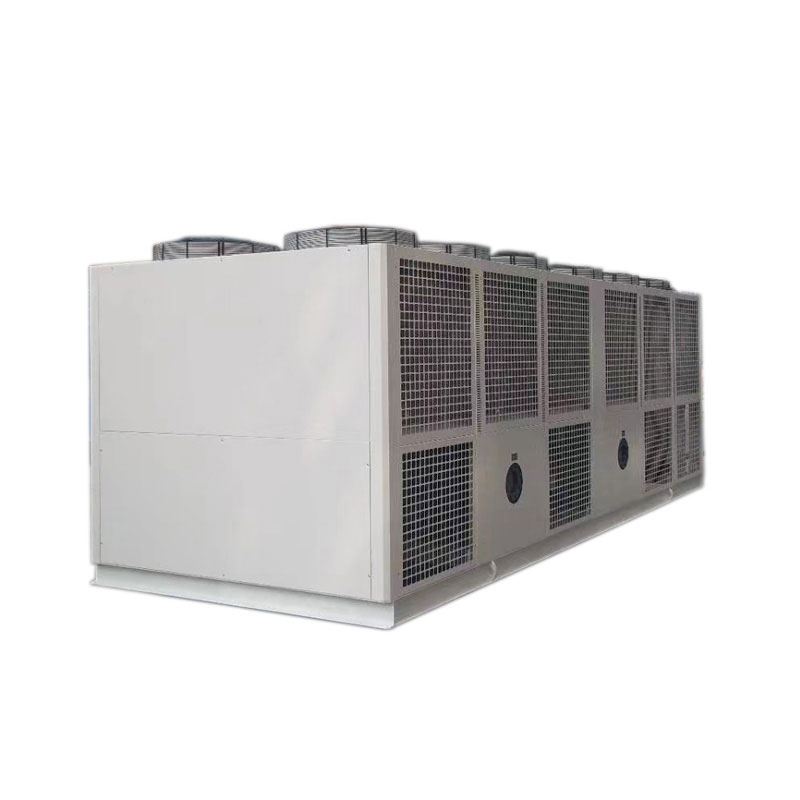

90 Ton Air Cooled Screw Chiller For Pharmaceutical

90 Ton Air Cooled Screw Chiller For Pharmaceutical

Air cooled screw chiller for pharmaceutical also called medical & pharmaceutical chiller ,which is a reliable cooling device mediated to provide low noise and vibration-free cooling operation for utilization in chemical and pharmaceutical applications .Due to the inherent chemical properties of pharmaceuticals, some pharmaceuticals are sensitive to processing time and temperature exposure, so the pharmaceutical processing process needs to be cooled by a chiller at all times to ensure the high quality of the final product,so chillers are a reliable and economically pharmaceutical cooling solution.

Air cooled screw chiller is equipped with a screw compressor evaporator, expansion valve and air-cooled condenser to dissipate system heat efficiently without demanding a chilled water supply,which absorbs heat from process water, and the heat is then transferred to the air around the chiller unit,it no need connect with cooling tower for heat dissipate. 90 Ton Air Cooled Screw Chiller For Pharmaceutical is with 300KW cooling capacity ,which equipped with ONE units semi-hermetic hanbell screw compressor usingR407c, R22, R134a, and R404a are all available depending on the screw chiller working condition, application requirements, and ambient temperature.

Tongwei is China reliable manufacturer and supplier of air cooled chiller .With many years of refrigeration experience, we guarantee the production of the best quality chiller machine with amazing specifications, super warranty offers and best after sales service .

If you require an air cooled screw chiller for your pharmaceutical & medical factory or any industry,Contact us to help you choose a chiller model hat exactly matches your application with reasonable price from 80KW to 1000KW and the chiller temperature control range is from +25℃ to -30℃.

90 Ton Air Cooled Screw Chiller For Pharmaceutical Technical Specification MODEL:TW-310ASH

How Does An 90 Ton Air Cooled Screw Chiller For Pharmaceutical Work?

For air cooled screw chiller, the chiller is with high efficiency shell and tube evaporator , without water tank and water pump inside the chiller ,so it need connect buffer tank and pump outside ,please see blow connection drawing for reference:

90Ton Air Cooled Screw Chiller with Buffer Water Tank Outside Installation for Reference

Features of Air Cooled Screw Type Chiller

✮Well Known Brand Screw Compressor

Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.

Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running. Most advanced patented highest precision manufacturing process.Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

Wide range of refrigerant for option, including R134A, R407c and R22(R404A upon request).

✮Microprogramming Control System

Industrial PLC centralized control combined with compressor capacity control system, precisely monitor. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.

Optional operation language, menu leading, unit running state easy to adjust.

✮Easy Installation, Reliable Running

It no need connect with cooling tower

Closely stepped start-up, minimize impact to electricity.

Steady and safe running, low vibration, easy for installation.Compact structure, less space demand and light in weight, easy for transport and installation.

Completely wired, inspected and tested pre-delivery, saving installation time and cost.

W-shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size

-High efficient evaporator with internal thread copper tube.-Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal Siemens PLC control, LCD touch screen interface.

Standard design charged R22, CFC Free R407C, R410A, R404A, R134A for option.

380V-415V/50Hz 3pH for standard design. Different design on customer’s request such as 220-570v 60hz 3ph for Philippines ,Mexico or USA customers.

What Are The Main Components Of 90 Ton Air Cooled Screw Chiller For Pharmaceutical

4.1 Compressor

The compressor is the key mover in Air Cooled screw type Chiller because it produces pressure variations to stir the refrigerant around.

For 90 Ton Air Cooled Screw Chiller For Pharmaceutical , which is with ONE unit Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Hanbell Screw Compressor

Bizter Screw Compressor

4.2 Evaporator

The evaporator is a crucial component of screw compressor chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. Screw compressor Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator

5.3 Condenser

The condenser for air cooled screw chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

5.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.

PLC Controller Panel

How I can Choose the Right Air Cooled Screw Type Chiller?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

5.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

5.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

5.3 Refrigerant

R22, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

5.4 Evaporator Choose

Air cooled screw chiller generally uses one evaporators: just is shell and tube heat exchanger.Shell and tube type evaporator, which requires an additional water buffer tank to connect.

5.5 Buffer Water Tank Capacity Choose

Buffer tank’s capacity can be customized according to specific needs. It can buffer a larger heat load, store more chilled water .

304 Stainless Steel Water Tank

Spare Part for Air Cooled Screw Chiller

What is the Difference Between Air Cooled Screw Type Chiller and an Water Cooled Screw Type Chiller

Air-cooled and water-cooled screw type chillers are both types of screw chillers used for cooling applications in various industries.

The main difference between air cooled screw type chiller and water cooled screw type chiller is condenser :

The condenser of an Air-Cooled Screw Type Chiller is cooled by the ambient air,which the heat generated during the cooling process is dissipated into the surrounding air;

Water Cooled Screw Type Chiller with a shell and tube water-type condenser that is attached to a cooling tower and is typically used in medium and wide installations where water is available.So Water cooled screw chiller need connect with water cooling tower and water cooling pump outside , the installation is more trouble than air cooled screw chiller .

But if your ambient temperature is very high above 50℃,we suggest you use air cooled screw chiller ,as air cooled screw chiller may consume more energy to achieve the same cooling capacity due to the limitations of air as a heat exchange medium and water cooled screw chiller uses constant water source for more stable and efficient heat dissipation,so in high ambient temperature , water cooled screw chiller is more energy-efficient and better choice for your application .

Water Cooled Screw Chiller

Shipping Way of 90 Ton Air Cooled Screw Chiller For Pharmaceutical

As a professional water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

3. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
