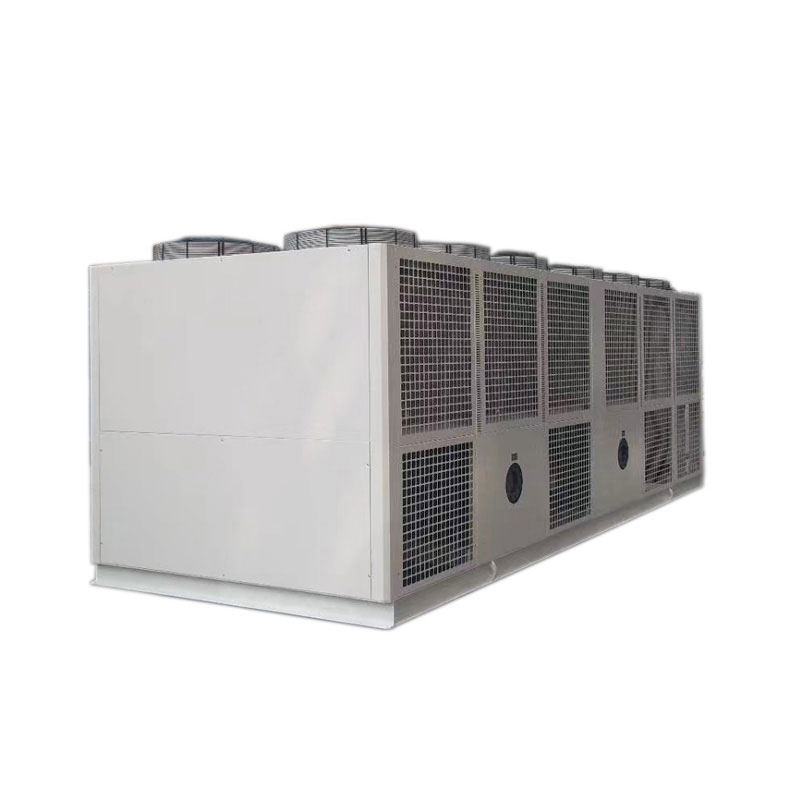

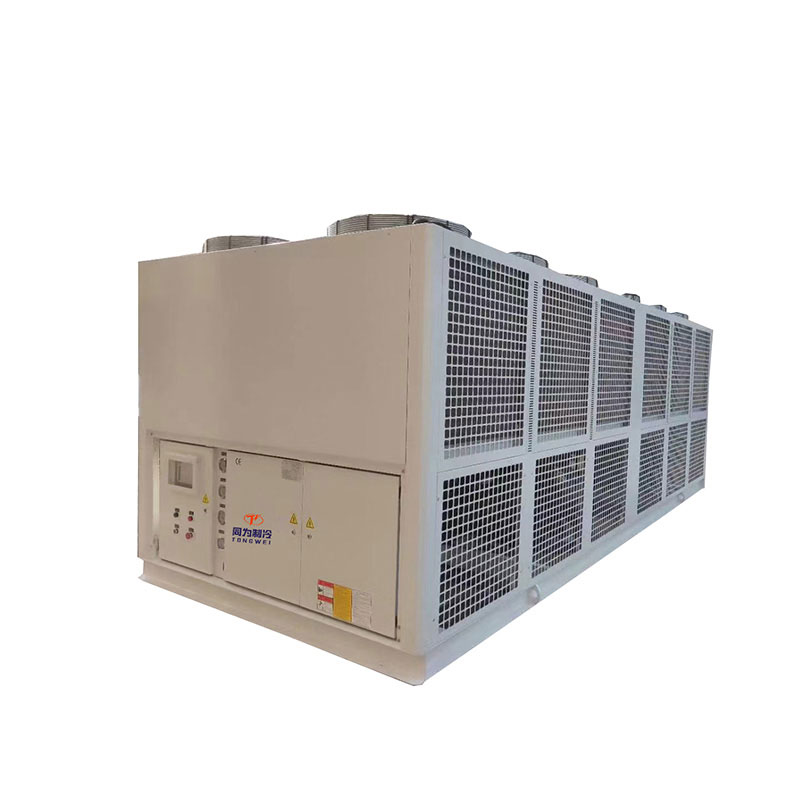

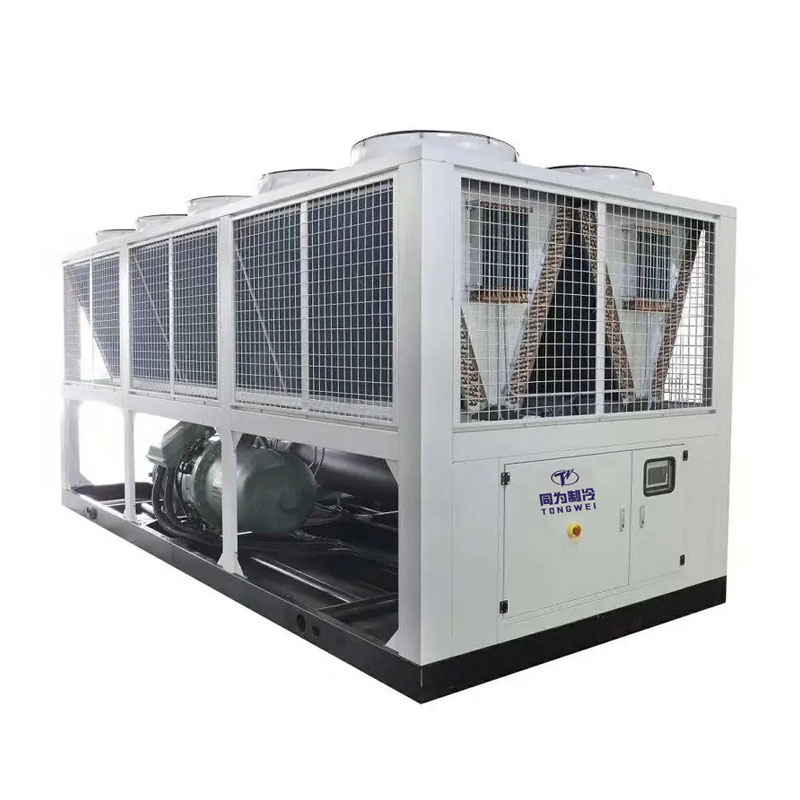

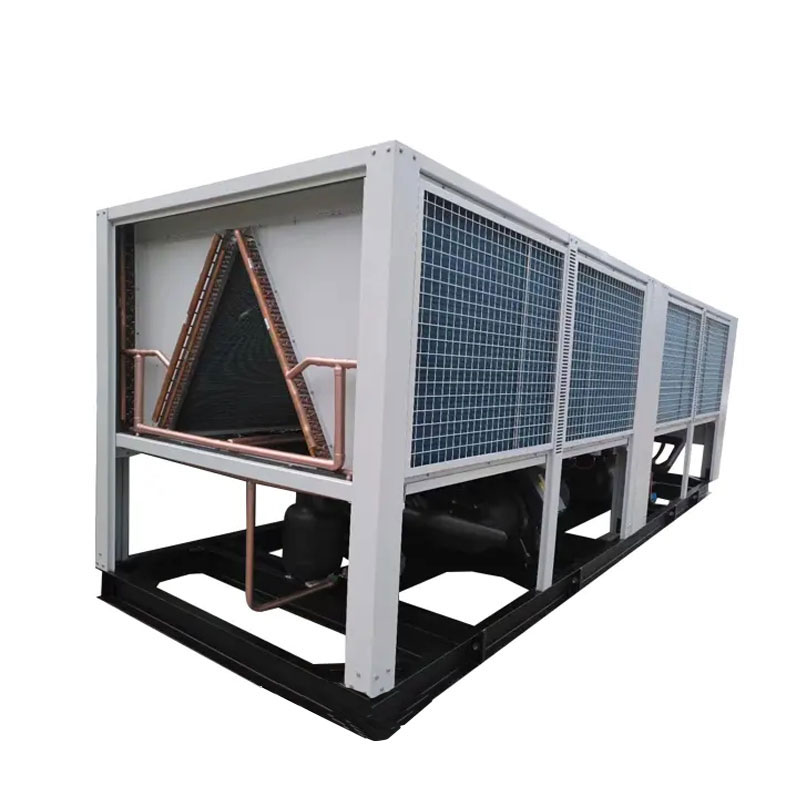

Industrial Air Cooled Screw Compressor Glycol Chiller 0C

Industrial Air Cooled Screw Compressor Glycol Chiller 0C

Industrial glycol chiller is one kind of low-temperature chiller using glycol water as the circulating coolant to achieve minus temperature for industrial and process applications.The two types of ethylene glycol are ethylene glycol-based or propylene glycol-based. The antifreeze properties of ethylene glycol ensure that the coolant remains in a fluid state to reach its low cooling point.Glycol is recommended for all chiller units when operating temperatures are below 41°F (5°C). A glycol chiller unit consists of refrigeration components and pipes containing a glycol-water mixture as the coolant. The chilled fluid from the refrigeration unit is transported through pipes associated with the heat exchanger surrounding the heating process. After absorbing heat from the associated process, the heated coolant is returned to the refrigeration unit to be cooled, and the process is repeated.

Industrial air cooled screw compressor glycol chiller is cooling capacity from 30 HP to 200HP ,with hanbell/Bizter screw compressor using environmental friendly R404a refrigerant,shell and tube evaporator,PLC controller,expansion valves ,without water tank and water pump.

As a leading industrial air cooled screw compressor glycol chiller manufacturer and supplier in China,we design glycol chiller system with one purpose in mind: to keep your process running strong. With over 15 years of experience, we offer a robust range of industrial grade air cooled and water cooled glycol chiller systems. We have a dedicated technical and customer support team who will guide you through the brewery chiller selection and startup process and be there for you long after installation. Rely on our industry-leading expertise to help you maximize your process operations and profits.If you are looking for glycol chiller system for your application, please feel free to contact us to customized your glycol cooling water systems with high quality and reasonable price for the low temperature chillers. We look forward to working with you.

Industrial Air Cooled Screw Compressor Glycol Chiller Technical Specification

Features And Advantages of Industrial Air Cooled Screw Compressor Glycol Chiller

 ▪ Siemens PLC temperature controller for overall monitoring of chiller running status;  .

 ▪ water temperature range from -30℃ to +5 ℃

 ▪ High quality shell and tube as heat exchanger

 ▪ Screw compressor with environmental friendly R404a refrigerant and four grade capacity control 25%-50%-75%-100%;

 ▪Schneider electrical components

 ▪ It no need connect with water cooling tower and water cooling pump

 ▪Chiller equipped with the following safety protections:Overload Protection,Inverse Phase Alarm,High/Low Pressure Alarm,Water Flow,Water Level Indicator,Anti-Freeze Protection

What Are The Main Components Of Industrial Air Cooled Screw Compressor Glycol Chiller

3.1 Compressor

The compressor is the key mover in Air Cooled Screw Glycol Chiller because it produces pressure variations to stir the refrigerant around.

For Industrial Air Cooled Screw Compressor Glycol Chiller , which is with Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R404a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Hanbell Screw Compressor

Bizter Screw Compressor

3.2 Evaporator

The evaporator is a crucial component of  air cooled screw glycol chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. Air Cooled Screw Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator

3.3 Condenser

The condenser for air cooled screw chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

3.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.

PLC Controller Panel

Spare Part for Industrial Air Cooled Screw Compressor Glycol Chiller

What is the Difference Between Glycol Scroll Chiller and Glycol Screw Chiller?

There are two types of glycol chiller: one is air-cooled glycol chiller ,the other is water-cooled glycol chiller ;

Air-cooled glycol chillers use ambient air to dissipate heat from the processes. They are energy-efficient, space-saving, and less maintenance that helps save money.

Water-cooled glycol chillers use water from an external water cooling tower to dissipate heat from the processes. These systems are longer lifespan, Relatively quiet, and more consistent cooling performance than the air-cooled glycol chiller.

Glycol Scroll Chiller                                       Glycol Screw Chiller

▪ 1hp-60HP                                                     Above 30HP

▪ Danfoss/Panasonic Scroll Compressor                Hanbell/Bitzer Screw compressor

▪ Built with water tank and water pump                Without water tank and water pump

Air Cooled Glycol Scroll Chiller   

Air Cooled Glycol Screw Chiller

Water Cooled Glycol Scroll Chiller   

Water Cooled Glycol Screw Chiller

Why Glycol Is Used for Cooling?

The most commonly used coolant in a chiller is water or a mixture of water-glycol. Glycol-based coolants consist of either ethylene glycol or propylene glycol. The main advantage of glycol coolants is their anti-freeze properties. Pure water freezes at 0 degrees C, while 30% ethylene glycol freezes at -14 degrees C. The low freezing point of glycol mixtures makes them ideal for cooling items that are below the freezing point of water. Although glycol has a lower heat capacity than water (each kilogram of glycol is easier to heat than one kilogram of water), the high temperature difference allows the glycol mixture to dissipate heat more quickly than pure water. The glycol mixtures are more suitable for applications where the chiller must quickly dissipate a large number of heat. In addition to providing excellent heat transfer parameters, glycol tends to discourage algae growth in heat transfer equipment.

Comparison of Ethylene Glycol and Propylene GlycolProperty

Ethylene Gycol And Propylene Glycol

How Does Industrial Glycol Chiller Work?

A glycol chiller is composed of a refrigeration component and tubing containing a water-glycol mixture as coolant. Chilled fluid from the refrigeration unit is channeled through the piping associated with a thermal exchanger surrounding a heated process. After absorbing heat from the associated process, the hot coolant is returned to the refrigeration unit for cooling after which the process is repeated.

A glycol chiller consists of a compressor, an evaporator, a condenser, a throttling element, and an electric control system. Let’s see what’s the working principle of a glycol chiller:

Glycol Chiller Working Principle

The compressor of glycol chiller

Tongwei glycol chiller uses top screw-type compressor features energy efficiency, low noise, and long service time.

In order to ensure that the pressure inside the evaporator is low enough and that the refrigerant is at such a low temperature, the compressor is used to pump out the evaporated refrigerant and compress the low temperature and pressure into the high temperature and pressure refrigerant gas.

Condenser for a glycol chiller

Glycol chillers are designed and manufactured by Tongwei and feature a choice of air-cooled or water-cooled condensers.

The high-temperature and high-pressure refrigerant condenses into liquid in the condenser. The refrigerant in the condenser releases heat in the air or water that is cooler than it.

Thermal expansion valve in a glycol chiller

Thermal expansion valve plays an important role in industrial glycol chiller. The refrigerant of the  glycol chiller is reduced from the condensation pressure to the evaporation pressure, so the liquid from the condenser can be put into the liquid tank.At this time, the refrigerant is at normal temperature and high pressure, and then passes through the expansion valve to lower the boiling point, and the liquid enters the evaporator to absorb heat and evaporate.

The evaporator in a glycol chiller

The evaporator for industrial air cooled screw glycol chiller just is: shell and tube type heat exchanger.

The low-temperature and low-pressure refrigerant liquid passes through the thermal expansion valve and exchanges with the evaporator.

Once the heat is absorbed, it becomes saturated or superheated steam that can be returned to the compressor for refrigeration.

The Ratio of Water to Glycol to Use

It is important to use the proper ratio of glycol to water mixture in the cooling system depends on the coldest temperature you need during operation, as insufficient glycol can cause the system to freeze, possibly bursting pipes and even destroying the chiller evaporator even may damage the glycol chiller, while too much glycol to a chiller system will result in an inefficient system.

But what’s the best ratio for glycol and water mixtures? Please see below glycol ratio of glycol and water mixtures for the glycol chiller in your cooling process:

What Applications Can Industrial Glycol Chiller Be Used For?

Glycol chiller is a specific kind of cooling system,which is  used to cool a variety of liquids and other industrial applications.

By using a glycol chiller can achieve the low temperature for your industrial usage you need .

Glycol chillers are most used for below these Industries:

9.1 Breweries

In breweries, the glycol chiller is used for cooling the wort,Controlling Fermentation,Crash Cooling Vessels,Prepackaging and Product Storage.

Glycol Chiller for Breweries

9.2 Wineries

Glycol chillers are widely used in the fermentation process, cold stabilization and room cooling purposes.

Glycol Chiller for Wineries

9.3 Cider Mills

Fermentation control needs critical water temperature control. Glycol chiller can provide cold chilling of the juice and milk, also the cold storage of the final product.

 Glycol Chiller for Cider Mills

9.4 Distilleries

During the fermentation process, the glycol chiller will provide a steady coolant for circulation between distillation tanks & stills for heat removal purposes.

Glycol Chiller for Distilleries

9.5 Food Industry.

Glycol chillers can provide low-temperature coolant to guarantee the safety and consistent quality of frozen foods, food processing companies need a low-temperature cooling day in and day out.

Glycol Chiller for Food Industry

9.6 Dairy Product

A properly designed dairy glycol chiller can cool the milk very rapidly to help keep milk temperatures (and bacteria growth) under control as it is transferred from the milking parlor to its insulated tank.

Glycol Chiller for Dairy Product

Do you need a glycol chiller for an application not mentioned here? Contact us and we’ll customize an affordable solution for your exact demands.

How I Can Choose The Right Industrial Air cooled Glycol Screw Chiller For Your Application?

There are four important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

10.1Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

10.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

10.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

10.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

Shipping Way of Industrial Air Cooled Glycol Screw Chiller

As a professional low temperature glycol chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
