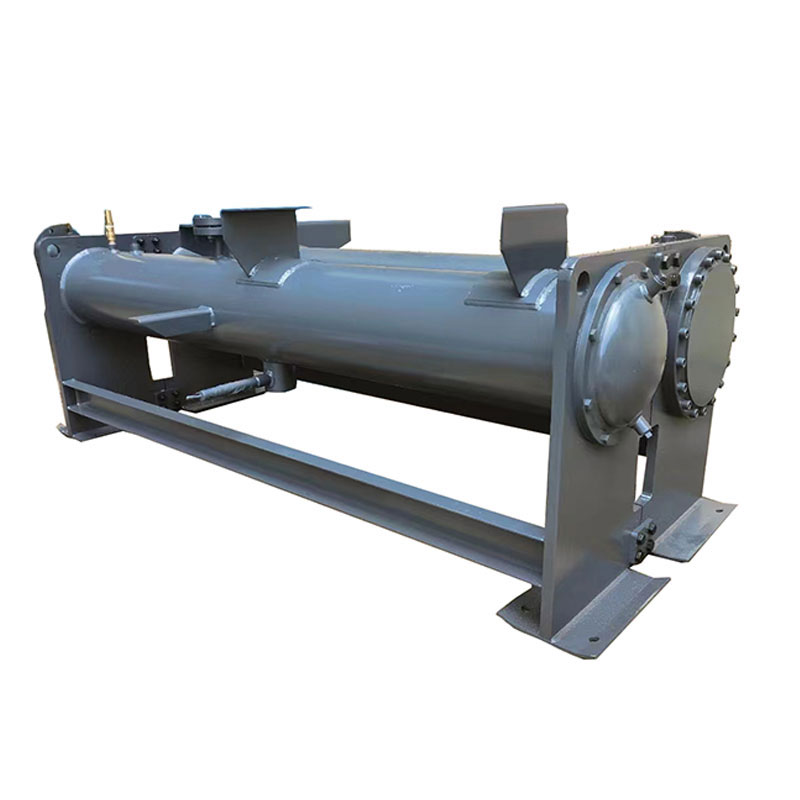

Shell and tube evaporator and heat exchanger is suitable for water cooled unit, water source heat pump, air cooled pump and air cooled heat pump unit. The product is applying for refrigerants of R22, R134a, R407C and R410A etc. The referigerating medium is for tap water, underground water, river water and sea water or brine, water and glycol solution, sulfate solution, etc.

Shell and Tube Heat Exchanger is one of the most popular types of heat exchanger that is being used for heat exchange between two fluids that circulate inside the unit in separate sections under high pressure and temperature.

Shell and Tube Evaporator and Heat Exchanger is made of some primary components as a baffle, baffle plate, pipe board, heat-transmitting pipeline, gaskets,  water box, tube bundle, cylindrical, shell, tube sheet, inlet plenum, outlet plenum.

Shell and Tube Heat Exchanger is highly compact and steadfast in its operation having a wide range of benefits as given below:

▪ Shell and Tube Heat Exchanger is featured with a cylindrical shell and bundle of U-shaped tubes inside the unit configuring counter flow inside tubes. One fluid flow inside tubes and other fluid inside the shell ensuring quick heat exchange.

▪ Shell and Tube Heat Exchanger is configured with several baffle plates that increase the heat-transmitting factor between two-channel fluids inside the shell and tube unit.

▪ Shell and Tube Evaporator and Heat Exchanger enables an application to exchange heat from the system speedily configured by baffle boards that increase the flow rate of fluids by triggering it forcibly to move in channels with the release of heat under pressure.

▪Along with baffle boards, Shell and Tube Heat Exchanger is also featured with stipulated channels configuring an increase in turbulent flow of fluids for fast heat exchange.

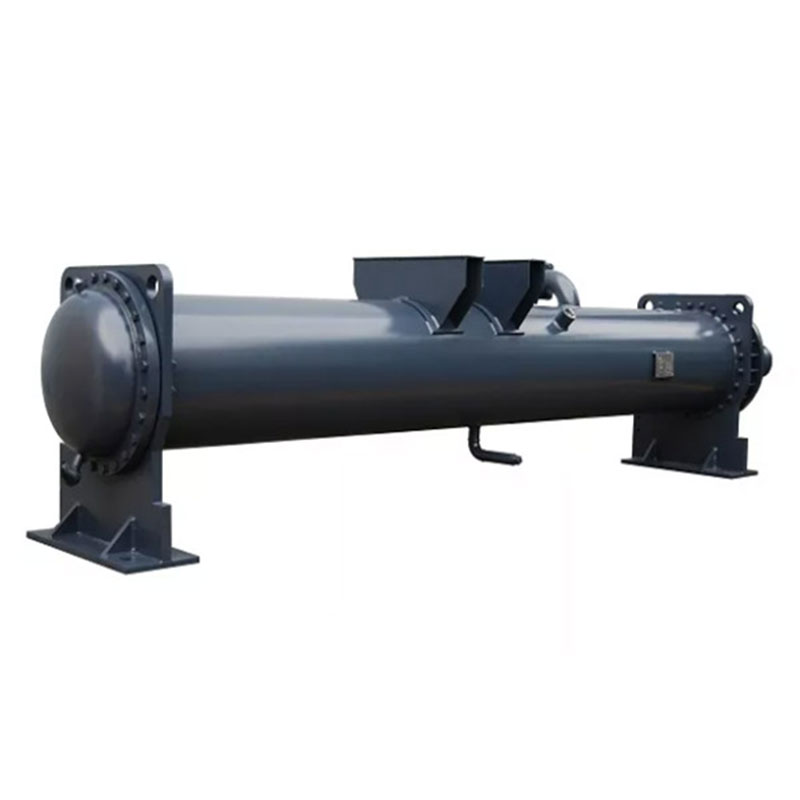

Cast Iron Material Shell and Tube Heat Exchanger

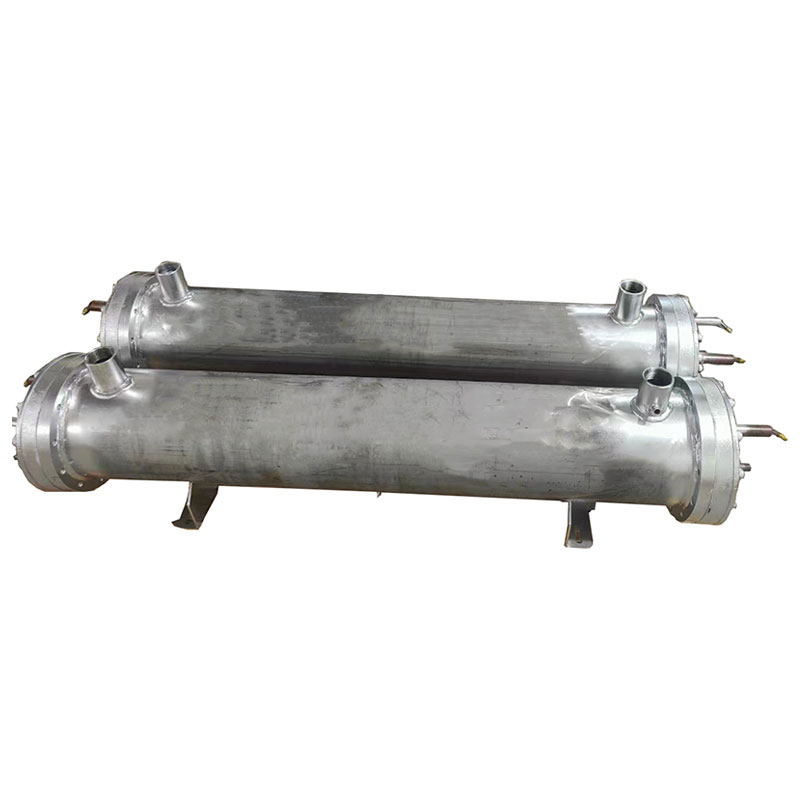

Stainless Steel Material Shell and Tube Heat Exchanger

Shell and Tube Evaporator and Heat Exchanger Features:

1. Adopting superior external thread copper tube to ensure high heat exchange efficiency, compact volume and light weight.

2. Gas tightness testing under air pressure 2.4Pa before delivery to ensure quality.

3. Equipped with safe fusible plug to ensure safe through automatical melt and depressurization when liquid reach specific temperature in shell.

4. Condenser end cap equipped water discharge device to avoid tube damage caused by water into ice at cold weather.

Shell and Tube Evaporator and Heat Exchanger Usage & Applications

The shell and tube evaporator is a kind of heat exchanger that widely applied for chemical and alcohol production. It is mainly composed of the shell, tube sheet, heat exchanging tube, sealing head, baffle plate, ect. It can be made of or dinary carbon steel, red copper or stainless steel. During the heat exchanger, a king of fluid enters from the tube connection of the sealing head, flows in the tube and exits from the other tube connection of the shell and exits from the other tube connection of the shell, which is called shell pass.
