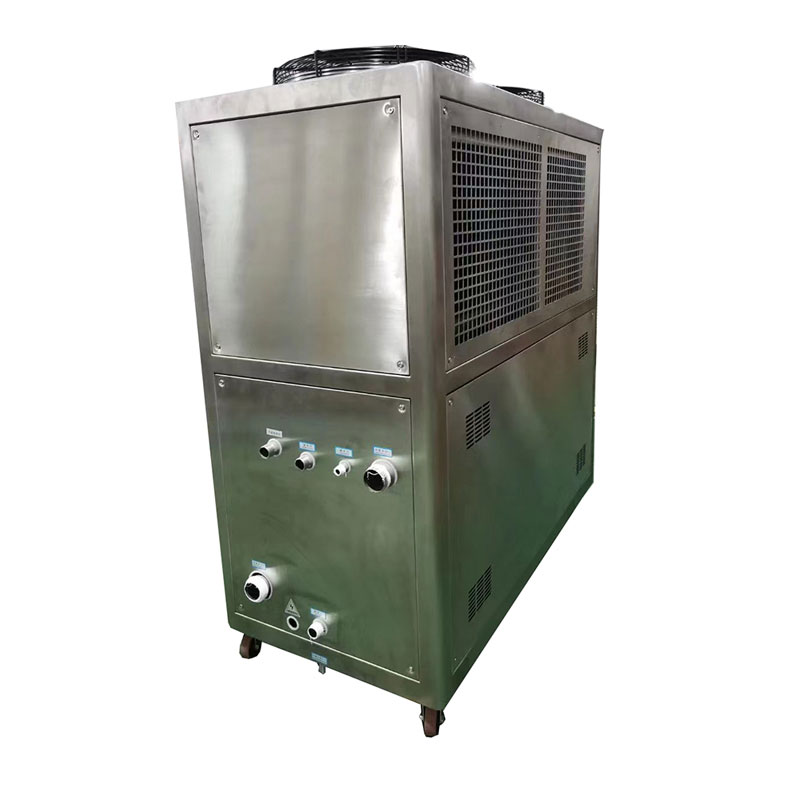

Stainless Steel Cover Air cooled Corrosion Resistant Chiller

Stainless Steel Cover Air cooled Corrosion Resistant Chiller

Air-cooled corrosion resistant chiller with stainless steel cover is an industrial air-cooled chiller widely used in the food ,medical and pharmaceutical industry. This is a friendly custom chiller.

Stainless steel chiller units are available in air-cooled and water-cooled types: their working principles are actually the same as industrial chillers. At the beginning, the compressor sucks in the low-temperature and low-pressure refrigerant gas after evaporation and refrigeration, and then compresses it into high-temperature and high-pressure gas and sends it to the condenser; after the high-pressure and high-temperature gas is cooled by the condenser, it condenses into normal temperature and high-pressure liquid; the normal temperature and high-pressure liquid flows into the thermal expansion When the valve is closed, it is throttled into low-temperature and low-pressure wet steam, flows into the evaporator, absorbs the heat of the frozen water in the evaporator, and lowers the water temperature; the evaporated refrigerant is sucked back into the compressor and repeats the next refrigeration cycle. The difference between air cooled and water cooled lies in the different methods of heat dissipation. The stainless steel cover air cooled corrosion resistant chiller uses aluminum fin+fan as condensers,they absorb heat from process water, and the heat is then transferred to the air around the chiller unit. The water-cooled stainless steel corrosion resistant chiller requires the installation of a water cooling tower to bring heat to the shell and tube condenser, and then a water pump brings the water to the cooling water tower for circulation back and forth. Due to the principle of high temperature and high pressure when the compressor works, the ambient temperature in summer is relatively high, and water-cooled chiller has a better effect, but it requires a cooling tower. The air-cooled type chiller is flexible to assemble and easy to install. It no need a cooling tower, is suitable for use in water-scarce areas or occasions that need to be moved.

As a leading custom stainless steel chillers manufacturer and supplier in China,not only do we provide high-quality chiller machines, but we prioritize excellent customer service. A major advantage of our Tongwei, is that our customers are our top priority, which sets us apart from our competitors. Our knowledgeable team is dedicated to providing excellent customer service and your satisfaction.Some of the key benefits our team provides for your chiller include:Thoroughly unpack, clean and test each chiller system before shipping; Conduct routine quality assurance checks on every unit; Only ship brand new machines and systems to our customers;Troubleshoot and resolve problems as promptly and efficiently as possible. Contact us today to get all of these great benefits with your industrial air-cooled water chiller. A member of our team will be happy to address any questions you may have and discuss complete technical specifications. We look forward to working with you.

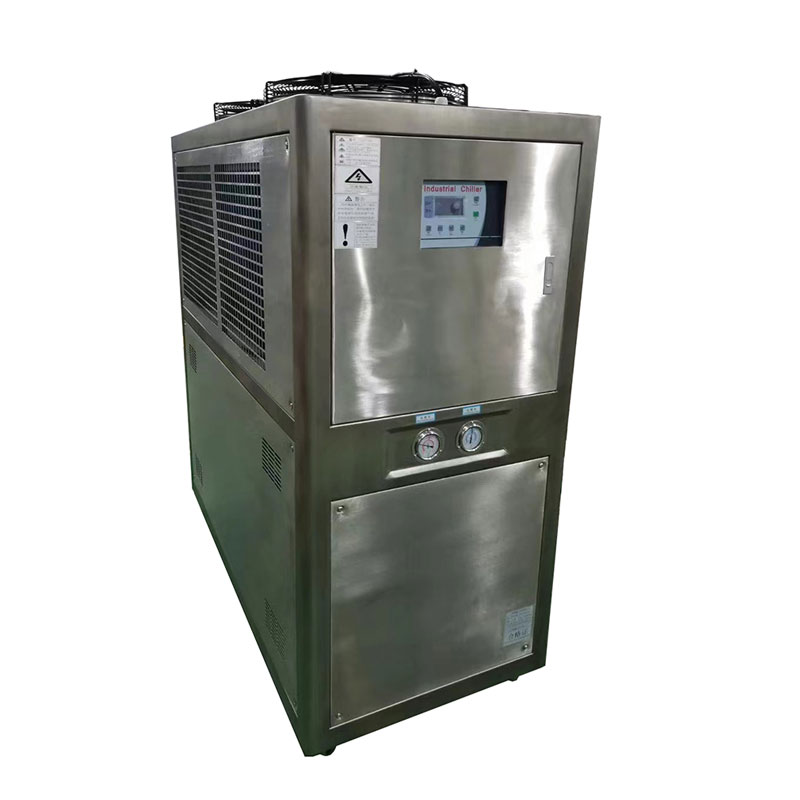

Air-cooled Stainless Steel Chiller

Stainless Steel Cover Air Cooled Corrosion Resistant Chiller Technical Specification

Features of Stainless Steel Cover Chiller

 ▪ Cooling capacity from 1/2 ton to 200 ton on air-cooled and water-cooled stainless steel cover corrosion resistant chiller

 ▪ The compressor is a high-quality the original brand Japan Panasonic, Denmark Danfoss, Taiwan (Hanbell) that is completely reliable and energy-saving.

 ▪ Stainless steel chiller built with a stainless steel water tank, which is an open device. Due to being the open type, it is much easier to maintain and clean

 ▪ Brazed plate/shell and tube heat exchanger for option

 ▪ Each compressor has a separate refrigeration circuit.

 ▪ Environmentally friendly refrigerants such as R134A, R407C, R410A are used. They meet the requirements of refrigeration temperature and environmental protection.

 ▪ It is having the integration of all the standard equipment like high pressure pump, iron pump, stainless pump to process the various specific application.

 ▪ Temperature selection range: Process chilled water between -30°C and 30°C can be provided (users can choose different unit specifications according to different production needs)

 ▪ Equipped with various safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface (PLC selection) is adopted, the operation is simple and convenient, and the operation status is clear at a glance.

 ▪ Simple&easy installation low maintenance cost

What Are The Main Components Of Stainless Steel Cover Air Cooled Corrosion Resistant Chiller?

3.1 Compressor

The compressor is the key mover in stainless steel Chiller because it produces pressure variations to stir the refrigerant around.

From 2 ton to 50 ton chiller , which is with Panasonic /Danfoss brand scroll compressor, using R410A/R407C/R134a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor

Danfoss Compressor

3.2 Evaporator

The evaporator is a crucial component of water chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator, shell and tube evaporator, 304SS stainless steel plate type evaporator.

Coil in SS Water Tank Evaporator

SS Plate Type+ Water Tank Evaporator

Shell and Tube Evaporator

3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.

the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump

High Pressure Water Pump

3.4 Condenser

The condenser for air-cooled stainless steel chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

3.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

Spare Part for Stainless Steel Cover Air Cooled Corrosion Resistant Chiller

What is the Difference Between Standard Industrial Air Cooled Chiller and Industrial Water Cooled Chiller?

Industrial Air-cooled and industrial water-cooled chillers are both types of chillers used for cooling applications in various industries.

The main difference between industrial air cooled chiller and industrial water cooled  chiller is condenser :

The condenser of an industrial air cooled chiller is cooled by the ambient air,which the heat generated during the cooling process is dissipated into the surrounding air;

Industrial Water Cooled Chiller with a shell and tube water-type condenser that is attached to a cooling tower and is typically used in medium and wide installations where water is available.So industrial Water cooled chiller need connect with water cooling tower and water cooling pump outside , the installation is more trouble than air cooled screw chiller .

But if your ambient temperature is very high above 50℃,we suggest you use industrial water cooledchiller ,as industrial air cooled chiller may consume more energy to achieve the same cooling capacity due to the limitations of air as a heat exchange medium and industrial water cooled chiller uses constant water source for more stable and efficient heat dissipation,so in high ambient temperature , industrial water cooled chiller is more energy-efficient and better choice for your application .

Standard 20HP Air Cooled Chiller

Standard 20HP Water Cooled Chiller

Industrial Applications of Stainless Steel Chiller Unit ?

Stainless steel chiller are very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage.

Portable chillers are also widely used in laboratory,food industry ,chemical industry and so on.

6.1 Laboratory

Stainless steel chillers are also widely used in laboratory.

6.2 Food Industry

Stainless steel chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Stainless steel Chiller For Food Industry

6.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,portable chiller are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Stainless steel Chiller For Chemical industry

How I Can Choose The Right Stainless Steel Cover Chiller For Your Application?

There are SIX important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

7.1 Calculate Right Cooling Capacity For Chiller

Chiller sizes are traditionally listed according to Ton,KW, But/h,Kcal/h. Tons does not refer to the actual weight of the chiller, but instead is a historical reference to a time when blocks of ice were harvested for cooling. Just like engines are still measured according to “horsepower”, the term “tons of refrigeration” stuck around：

1 KW=860 kcal/h ;

1 TON=3.517 KW;

1 KW=3412 Btu/h;

7.2 Types of stainless steel chiller system?

There are two types of chiller :Air Cooled Stainless Chiller and Water Cooled Stainless Steel Chiller.

Water cooled chiller needs a separated water cooling tower and water cooling pump ,if you don‘t have existing water cooling tower,we suggest you use air cooled chiller; But if your ambient temperature is very high above 55℃ ,we suggest you use water cooled chiller , as it is easier to dissipate heat for water cooled chiller with water cooling tower.

But Most customers use air cooled stainless steel chiller ,which is more easily install and save space.

7.3 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

7.4 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

7.5 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

7.6 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator with buffer tank.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

But it has a limited capacity and is not suitable for applications with larger chilled water demands.External tank’s capacity can be customized according to specific needs.

It can buffer a larger heat load, store more chilled water, but the installation will be more troublesome.

Shipping Way of Stainless Steel Cover Air Cooled Corrosion Resistant Chiller

As a professional custom chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your custom stainless steel chiller supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.

▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.

▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
