140 Ton Stationary Air Cooled Water Chillers

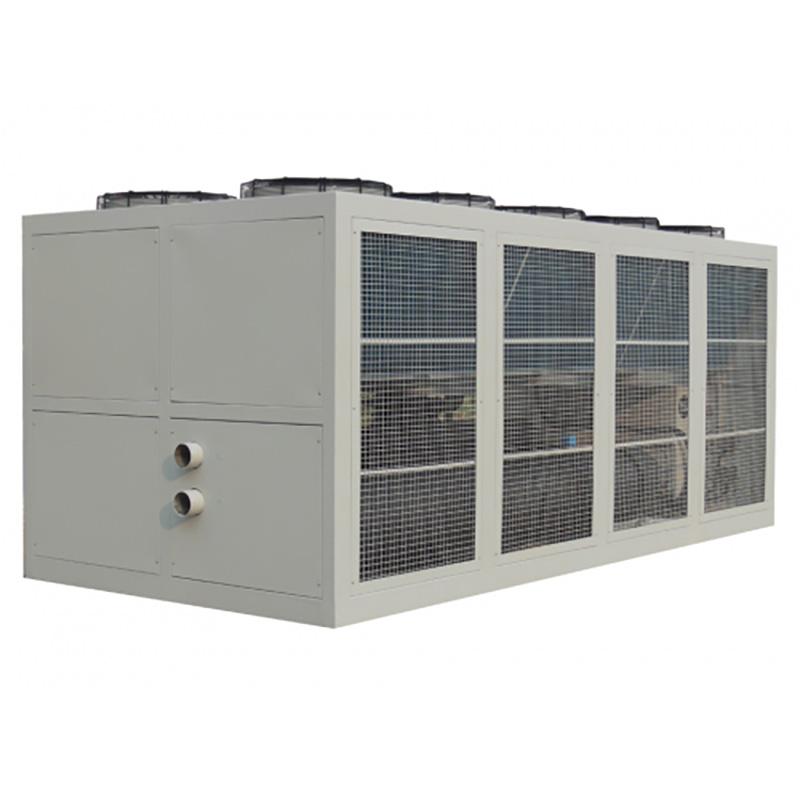

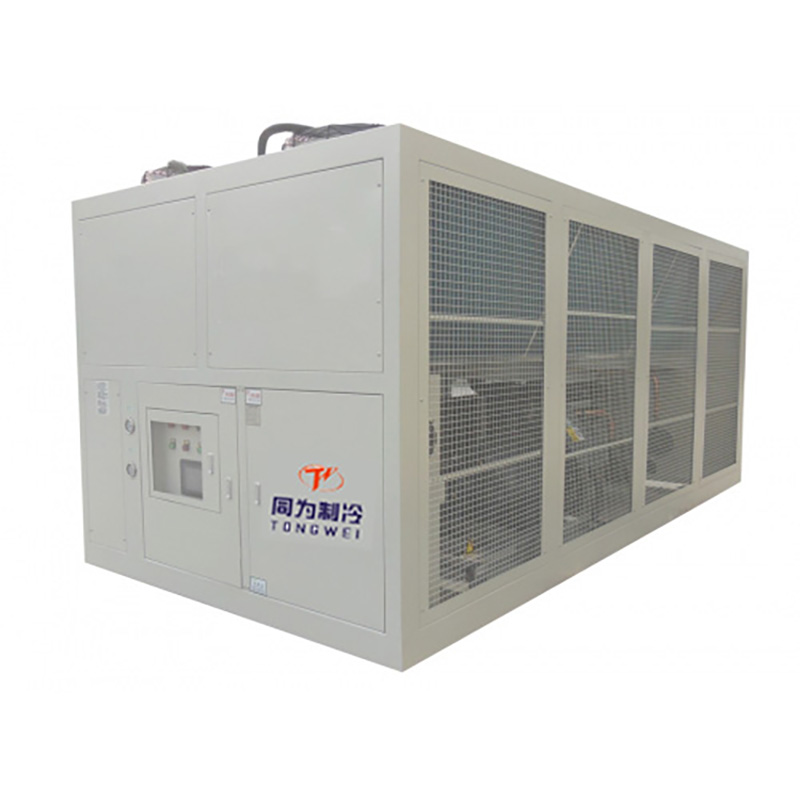

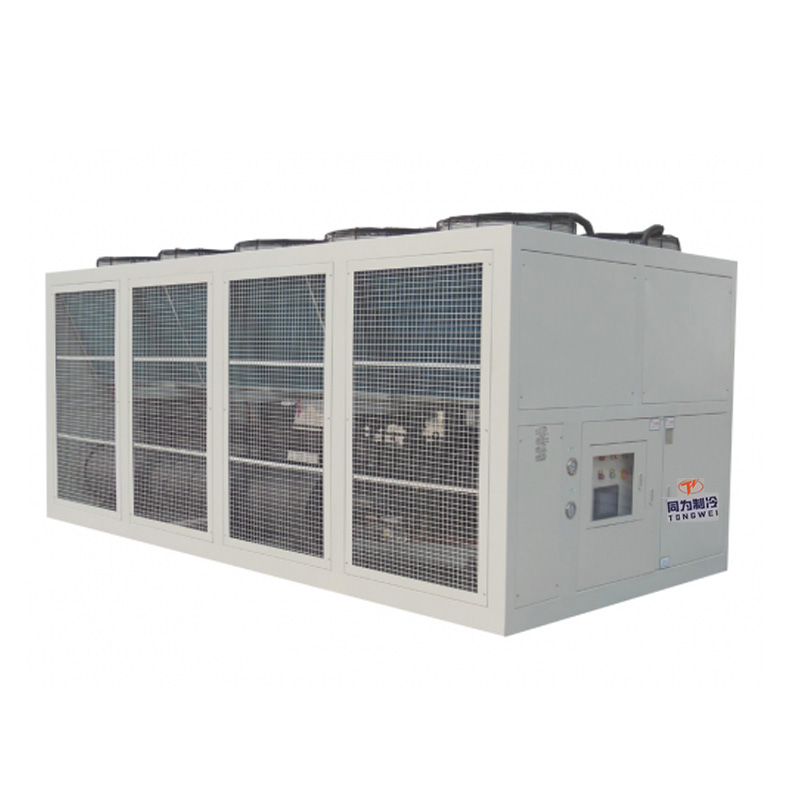

140 Ton/500KW Stationary Air-Cooled Water Chillers

Tongwei is a leading China 140 Ton Stationary Air Cooled Water Chillers manufacturers and suppliers. Stationary air-cooled water chiller refers to any chiller that does not include a pump and water tank. The main component is a self-contained chiller that must be piped to a pump and a separate tank or pool to function.This chiller system typically has separate controls for the chiller and pump or pumps, with electrical connections for each component. Ideally, the controls should be wired together to prevent the chiller from cooling until the circulation pump is running.

140 Ton stationary air-cooled water chiller is equipped with two units semi-hermetic hanbell screw compressor usingR407c, R22, R134a, , and R404a are all available depending on the screw chiller working condition, application requirements, and ambient temperature. Stationary chiller is widely used for die casting, rubber, printing, plastic injection molding, beverage production, metal polishing, the pharmaceutical industries and other other industries.

As a China professional chiller manufacturer and supplier ,we can provide a complete range of stationary chiller,  with cooling capacity from 30KW to 1000KW and the chiller temperature control range is from +25℃ to -30℃.

140 Ton Stationary Air Cooled Water Chillers Technical Specification MODEL:TW-495ADH

How Does An 140 Ton Stationary Air Cooled Water Chiller Work?

140Ton Stationary Air Cooled Water Chiller with Buffer Water Tank Outside Installation for Reference

Features of Stationary 140 Ton Stationary Air Cooled Water Chillers

»Multistage-level energy control: realizing stepwise or infinitive range of energy regulation from 0 to 100%,it can save power maximally.

»High quality branded Hanbell/Bizter screw compressor for low noise ad running smoothly.

»Shell and tube evaporator

»PLC Controller:which can reflect the running situation,the operation is more convenient.

»No need water cooling tower

»Easy installation&operation,low-maintenance cost

What Are The Main Components Of 140 Ton Stationary Air Cooled Water Chillers

4.1 Compressor

The compressor is the key mover in stationary air cooled Chiller because it produces pressure variations to stir the refrigerant around.

For 140 Ton chiller , which is with 2 units Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Hanbell Screw Compressor

Bizter Screw Compressor

4.2 Evaporator

The evaporator is a crucial component of  stationary air cooled chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. Stationary Air Cooled Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator

4.3 Condenser

The condenser for air cooled screw chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

4.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.

PLC Controller Panel

Stationary Air Cooled Chillers Vs Stationary Water Cooled Chillers

▪ Air cooled chillers require less maintenance than water-cooled units.

▪ Air cooled chillers do not require a water cooling tower or a condenser water cooling pump.

▪ Consume approximately 10% more power than a water-cooled unit due to wet surfaces transferring heat better than dry surfaces.

▪ Air-cooled chillers require less water.

Air-cooled chiller systems are widely used in places where water resources are not sufficient or water quality is not very good. The most convenient part is that air-cooled chiller systems do not require cooling towers, so they are easy to install. (If an air-cooled chiller isn’t what you need, please refer to water-cooled chiller.)

120 Ton Staitionary Water-Cooled Chiller

What are Differences Between Stationary Chiller and Portable Chiller ?

The main difference between stationary chiller and portable chiller is that :

Stationary chiller does not include a pump or tank inside , which need buffer water tank and water pump outside;

Portable chiller combines all necessary components including – the refrigeration circuit, full diagnostic touch screen controllers and electrics, process pump ,a reservoir tank,which is easily to install.

Stationary Air-Cooled Chiller

Air-Cooled Chiller

How I can Choose the Right Stationary Air Cooled Water Chiller?

There are four important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

7.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;  1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

7.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

7.3 Refrigerant

R22, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

7.4 Evaporator Choose

Air cooled screw chiller generally uses one evaporators: just is shell and tube heat exchanger.Shell and tube type evaporator, which requires an additional water buffer tank to connect.

7.5 Buffer Water Tank Capacity Choose

Buffer tank’s capacity can be customized according to specific needs. It can buffer a larger heat load, store more chilled water .

304 Stainless Steel Water Tank

Spare Part for Air Cooled Screw Chiller

Industrial Applications of Stationary Air Cooled Water Chiller

Stationary chiller are very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage.Air cooled screw chillers are also widely used in plastic industry,food industry ,chemical industry and Cement/ Concrete Cooling.

8.1 Plastic Industry

Stationary air-cooled chillers are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extrude, and extrusion lines, blowing molding machines.

The function of using an air-cooled screw chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Stationary Air Cooled Chiller For Plastic Industry

9.2 Food Industry

Air cooled chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Stationary Air Cooled Water Chiller For Food Industry

8.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,air cooled screw chiller are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Air Cooled Screw Chiller For Chemical industry

4 Cement /Concrete Cooling

Cement production involves a series of chemical reactions that generate significant amounts of heat.Cement is usually mixed with water to from the material known as concrete whose temperature is to a great extent determined by the water used in the chemical combination of cement aggregates and water.

10.Shipping Way of Stationary Air Cooled Water Chiller.

As a professional water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
