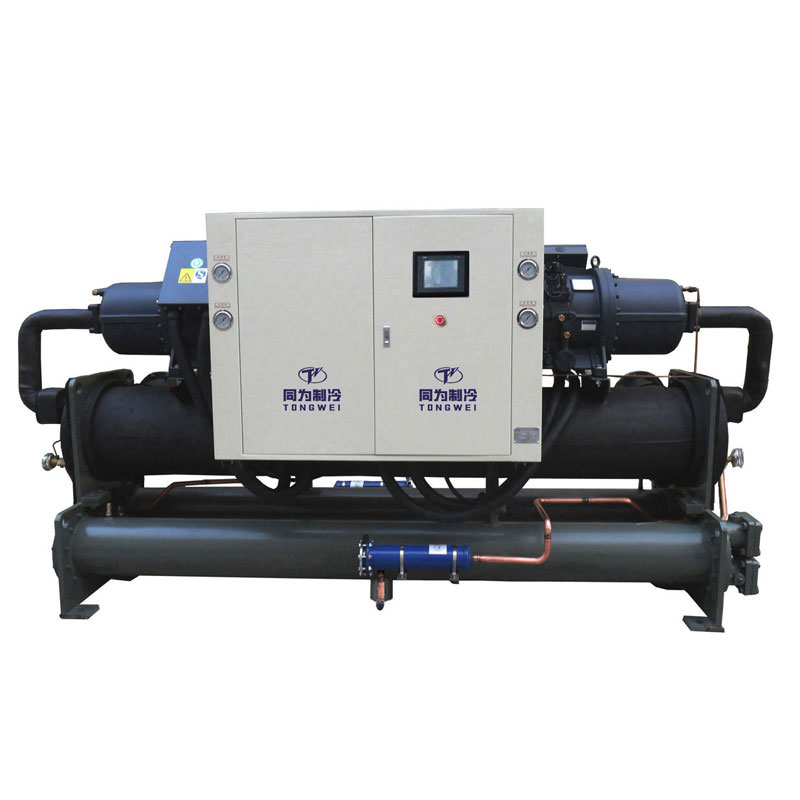

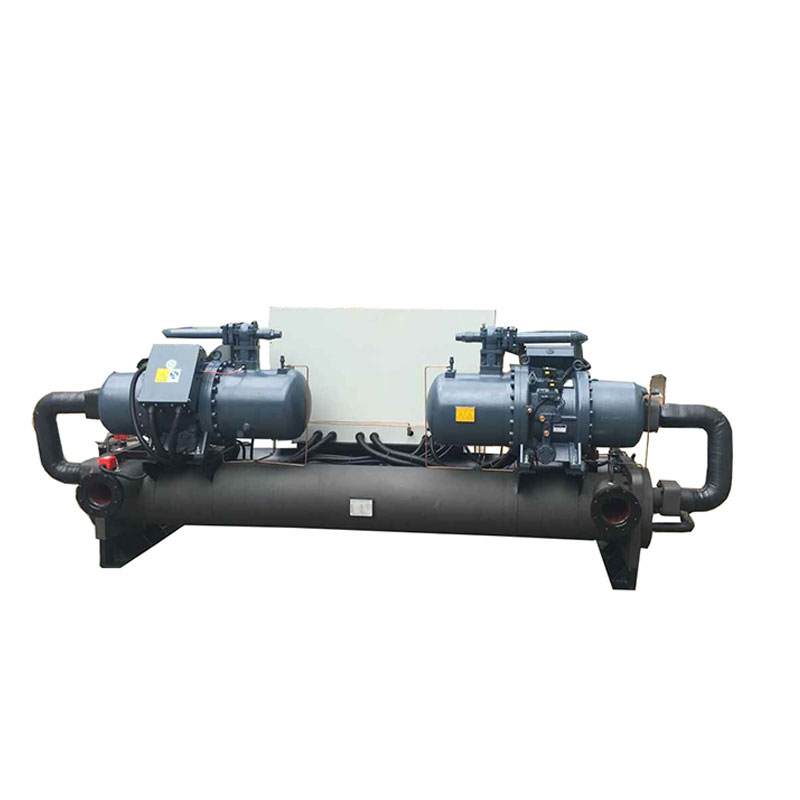

Stationary water chiller is a type of cooling device that absorbs heat from process water and transfer it to a separate water source such as a cooling tower,it does not include a pump and water tank.This type of water chiller systems feature high efficiency and stability.Stationary water chiller for beverage process also called beverage chiller,provide low-temperature cooling water, reduce the temperature of  the beverage manufacturing process, the chillers use for preform mould, bottle-blowing, bottle filling and beverage cooling. Stationary water chiller is equipped with Panasonic/Danfoss scroll compressor for 1/2HP to 60HP cooling capacity , semi-hermetic hanbell /Bizter screw compressor for above 30HP cooling capacity usingR407c, R410a, R134a, , and R404a are all available depending on the chiller working condition, application requirements, and ambient temperature, shell and tube evaporator,expansion valve and water-cooled shell and tube condenser.With a wide temperature control range and refrigeration capacity, it can precisely control temperatures between -30°C to 25°C. It need connect with cooling tower water cooling pump and buffer water tank outside.We not only provide stationary water chiller but also stationary air cooled chiller , Portable water chiller and Industrial chiller.

As a China leading manufacturer and supplier of stationary chiller over 15 years, Tongwei has exported various stationary air cooled or water-cooled chillers cooling capacity from 10 Ton,20 Ton,40Ton,50Ton,80Ton 120 Ton and 200Ton to the USA, Canada, Philippines, Australia, Malaysia, Singapore, Indonesia, Chile, Mexico, ,Argentina, Colombia, South Africa, Kuwait, Egypt, Saudi Arabia etc. We not only provide high-quality chiller machines, but we prioritize excellent customer service. A major advantage of our Tongwei, is that our customers are our top priority, which sets us apart from our competitors. Our knowledgeable team is dedicated to providing excellent customer service and your satisfaction.Some of the key benefits our team provides for your chiller include:Thoroughly unpack, clean and test each chiller system before shipping; Conduct routine quality assurance checks on every unit; Only ship brand new machines and systems to our customers;Troubleshoot and resolve problems as promptly and efficiently as possible. Contact us today to get all of these great benefits with your stationary chiller. A member of our team will be happy to address any questions you may have and discuss complete technical specifications. We look forward to working with you.

Stationary Water Chiller Technical Specification

How Does Stationary Water Chiller For Beverage Process Work?

As this stationary water chiller is water-cooled ,it need connect with cooling tower for heat dissipate ,the chiller is with shell and tube evaporator and condenser ,so it also need connect buffer tank and pump outside ,please see blow connection drawing for reference:

Stationary Water Chiller with Buffer Water Tank Outside Installation for Reference

3.Features of Stationary Water Chiller

»High quality branded Panasonic/Danfsso scroll compressor or Hanbell/Bizter screw compressor for low noise ad running smoothly.

» Stationary water chiller cooling capacity from 10 ton to 300 Ton.,chilled water temperature from -30℃ to 25 ℃.

»Stationary water chiller uses high-efficiency shell and tube heat exchange to improve cooling efficiency. At the same time, in order to reduce the amount of lubricating oil entering the heat exchanger, the chiller increases the secondary oil content to minimize the amount of oil entering the heat exchanger and passes it through a specially designed injector. The oil return device guides the lubricating oil in the heat exchanger back to the compressor, improving the refrigeration efficiency of the unit and improving the reliability of the unit's operation.

»By a water pump, a continuous stream of chilled water enters the chiller from the water tank. The water tank and cooling components of the water-cooled chemical chiller are connected through water pipes

»Use refrigerants such as R404A, R410a, R134a/R407C, etc. to meet the requirements of refrigeration temperature and environmental protection

»380V-415V/50Hz 3pH for standard design. Different design on customer’s request such as 220-570v 60hz 3ph for Philippines ,Mexico or USA customers.

»It need connect with cooling tower ,external water tank and condenser water pump .

What Are The Main Components Of Stationary Water Chiller For Beverage Process ?

4.1 Compressor

The compressor is the key mover in stationary water Chiller because it produces pressure variations to stir the refrigerant around.

For Stationary Water Chiller For Beverage Process , from 10 ton to 50 ton ,which is with Panasonic/Danfoss scroll compressor , above 30ton ,which is with Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Panasonic Compressor

Danfoss Compressor

Hanbell Screw Compressor

Bizter Screw Compressor

4.2 Evaporator

The evaporator is a crucial component of stationary water chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. water Cooled screw Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator

4.3 Condenser

The condenser for water cooled screw chiller is water-cooed type shell and tube for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Water-cooled type Shell and Tube Condenser

4.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.

PLC Controller Panel

Stationary Air Chillers Vs Stationary Water Chillers

▪ Air cooled chillers require less maintenance than water-cooled units.

▪ Air cooled chillers do not require a water cooling tower or a condenser water cooling pump.

▪ Consume approximately 10% more power than a water-cooled unit due to wet surfaces transferring heat better

than dry surfaces.

▪ Air-cooled chillers require less water.

Air-cooled chiller systems are widely used in places where water resources are not sufficient or water quality is not very good. The most convenient part is that air-cooled chiller systems do not require cooling towers, so they are easy to install. (If an air-cooled chiller isn’t what you need, please refer to water-cooled chiller.)

120 Ton Stationary Air-Cooled Chiller

120 Ton Staitionary Water-Cooled Chiller

What are Differences Between Stationary Chiller and Portable Chiller ?

The main difference between stationary chiller and portable chiller is that :

Stationary chiller does not include a pump or tank inside , which need buffer water tank and water pump outside;

Portable chiller combines all necessary components including – the refrigeration circuit, full diagnostic touch screen controllers and electrics, process pump ,a reservoir tank,which is easily to install.

Stationary Water-Cooled Chiller

Portable Water-Cooled Chiller

How Choose Right Water Cooling Tower For Your Stationary Water Chiller?

Water cooled chiller need connect with water cooling tower and water cooling pump outside for heat dissipation,so how to choose right water cooling tower model to your water cooled screw chiller ?

There are three important temperature factors you need to consider when choosing a cooling tower for water cooled chiller: inlet hot water temperature, outlet cold water temperature, and wet bulb temperature. The hot water temperature is that which enters the tower. The cold water temperature is that which leaves the water while the wet bulb temperature refers to the prevailing temperature of the geographic region where the tower is located.

Approach is the term used to refer to the difference between the temperatures of the water source as it enters the tower versus the temperature of the water once it has left the tower. This is a crucial determiner of the effective of the heat exchange process.

To choose the right cooling tower, mechanical efficiency should be given priority. This refers to the amount of fan power needed to circulate ambient air within the cooling tower. The range – or the difference in temperature between hot and cold water – is also crucial as it will impact energy usage.

so to find out how to choose a cooling water tower with sufficient cooling capacity, you should understand what circumstances require the use of a cooling tower. Please find the below water cooling tower is suitable for water cooled screw chiller :

How I can Choose the Right Stationary Water Chiller?

There are FIVE important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

8.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

8.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

8.3 Refrigerant

R22, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

8.4 Evaporator Choose

Air cooled screw chiller generally uses one evaporators: just is shell and tube heat exchanger.Shell and tube type evaporator, which requires an additional water buffer tank to connect.

8.5 Buffer Water Tank Capacity Choose

Buffer tank’s capacity can be customized according to specific needs. It can buffer a larger heat load, store more chilled water .

304 Stainless Steel Water Tank
