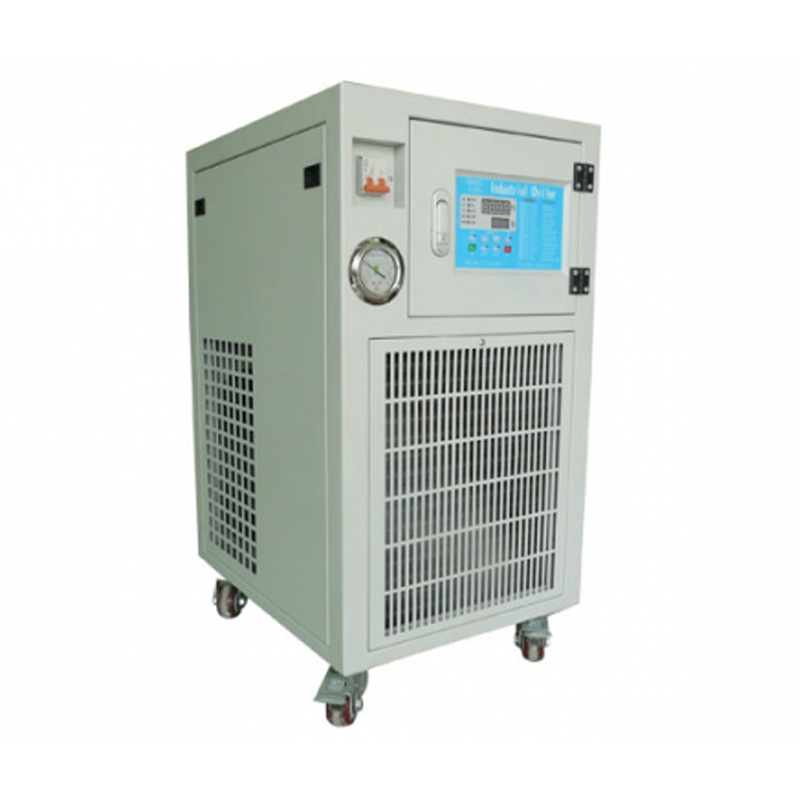

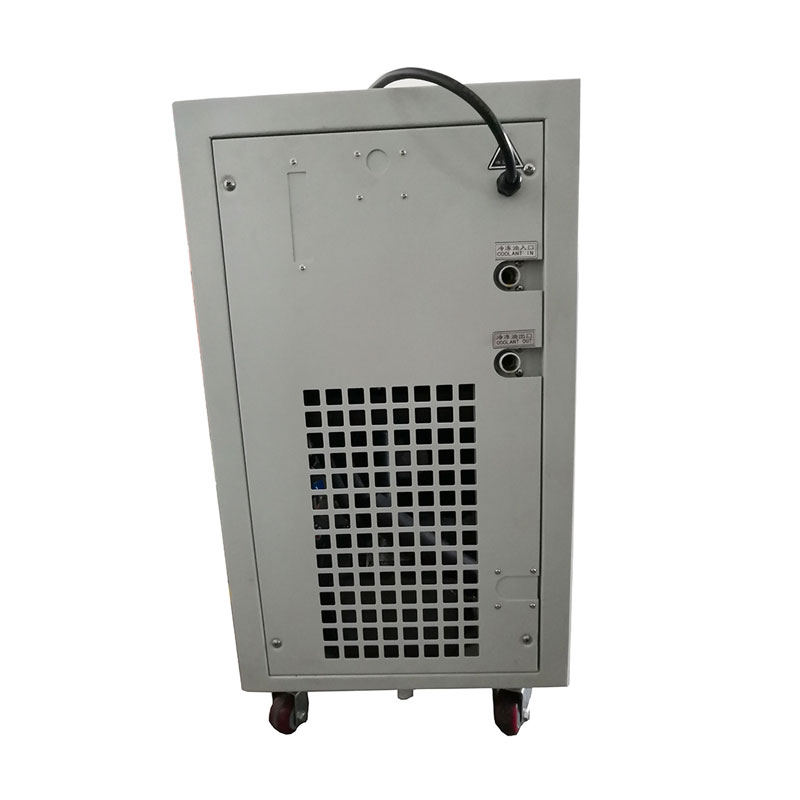

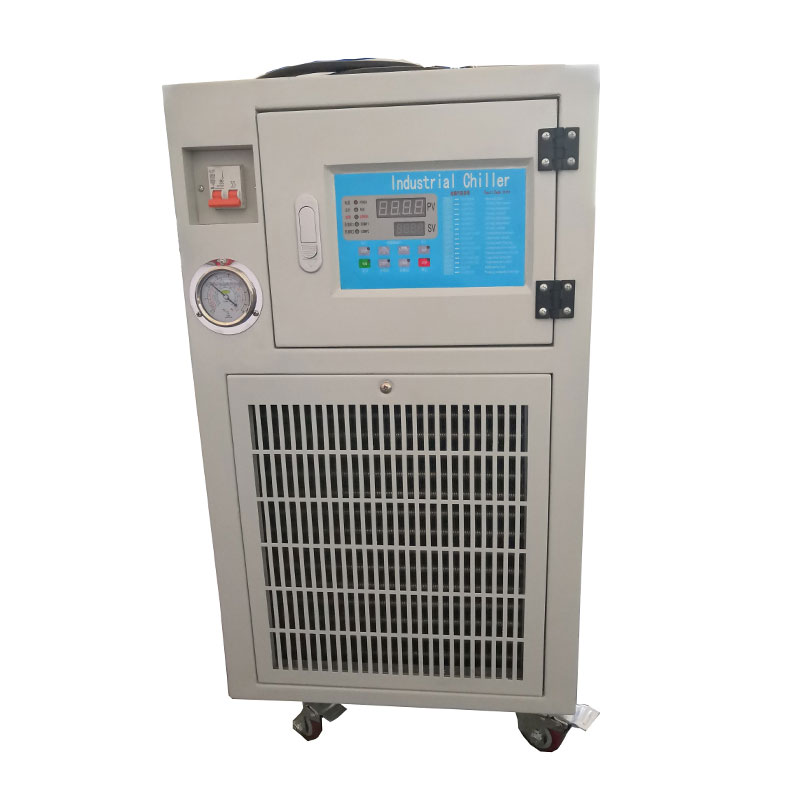

1HP Air cooled Small Hydraulic Oil Coolant Chiller
  • 1HP Air cooled Small Hydraulic Oil Coolant Chiller1HP Air cooled Small Hydraulic Oil Coolant Chiller
  • 1HP Air cooled Small Hydraulic Oil Coolant Chiller1HP Air cooled Small Hydraulic Oil Coolant Chiller
  • 1HP Air cooled Small Hydraulic Oil Coolant Chiller1HP Air cooled Small Hydraulic Oil Coolant Chiller
  • 1HP Air cooled Small Hydraulic Oil Coolant Chiller1HP Air cooled Small Hydraulic Oil Coolant Chiller

1HP Air cooled Small Hydraulic Oil Coolant Chiller

Tonwei is your professional 1HP Air cooled Small Hydraulic Oil Coolant Chiller manufacturer and supplier in China with over 15 years of experience. This 1HP/3KW small hydraulic oil coolant chiller a reliable working cooling unit for cooling hydraulic oil and lubricating oil of processing machines. As a professional oil chiller manufacturer, Tongwei has a complete line of all models of oil cooling chillers, including lubrication oil chiller, hydraulic oil chiller, portable oil chiller, oil cooling unit, and immersion oil chiller. We can best after sales service ,warranty and good quality chiller unit. We look forward to becoming your long-term oil chiller unit supplier in China.

Chiller Model: TW-25APO
Cooling Capacity: 2.85KW(2451 kcal/h) @ 50HZ / 3.4KW(2941kcal/h) @ 60HZ
Refrigerant: R22/R407c/R410a/R134A/R404a
Power Supply: 220V/50HZ /1PH (Standard) / 208-240V/60HZ/1PH(Customized)
Compressor Brand: Panasonic Scroll Compressor
Evaporator Type: Coil in SS Oil Tank (Standard) / SS Plate Type Customized)

Send Inquiry

Product Description


1HP/3KW Air-cooled Small Hydraulic Oil Coolant Chiller

Tongwei is a leading China 1HP Air cooled Small Hydraulic Oil Coolant Chiller manufacturers and suppliers. 1HP oil chiller is a reliable cooling machine for cooling hydraulic oil and lubricating oil of processing machines. It cools the hydraulic power pack of the oil by providing a supply of chilled water to circulate and maintain precise oil temperatures in hydraulic systems of CNC machine tools, high-speed presses and hydraulic special machine tools and hydraulic equipment.


1HP oil chiller model TW-25APO includes a multi-stage hermetic scroll compressor using R410A/R407C refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly.The chiller includes oil pump and oil tank inside.Oil chiller is widely used in many applications as carved machines, hydraulic presses, plastic industry, welding, blow molding, injection molding, broaching machines, CNC machines, grinding machines, etc.


Tongwei is the top manufacturer and supplier of oil cooling chiller, located in China. With many years of refrigeration experience, we guarantee the production of the best quality industrial chiller with amazing specifications and super warranty offers.All oil chiller is with CE Certification.


1HP Air cooled Small Hydraulic Oil Coolant Chiller Technical Specification MODEL:TW-25APO

Model

TW-25APO

Nominal Cooling Capacity

Kcal/h

2451

KW

2.85

Max Power Consumption

kw

1.39

Power Source



 1PH -220V -50HZ (Standard)
1PH -208-220V -60HZ (Customized)

Refrigerant

type



R407C

control



Capillary

Compressor

type



hermetic scroll

power

kw

0.89

Condenser

type



Efficient aluminum finned copper sleeve+low noise external rotor fan

fan motor

kw

0.13

Evaporator

type



    Stainless steel Plate

inlet and outlet connection

inch

                      3/4

Oil Pump

Power

Kw

0.37

Max flow rate

m3/h

1.2

Kgf/cm2,max/outlet pressure loss

3

Oil viscosity Scope

0.5-300 CST/Hydraulic oil,lubricating oil 0.5-300CST

Oil Tank

L

22

Safety Devices

Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection

Dimension

With  tank

mm

575*430*1200

Weight

With  tank

kg

92


Features And Advantages of 1HP Air cooled Small Hydraulic Oil Coolant Chiller

»The oil viscosity remains constant and featured by a micro temperature controller. The micro temperature controller detects changes in oil temperature from the set value and regulates it with liquid refrigerant.

»220V 50HZ 1PH or 208-220V 60HZ 1Phase power supply for option

» All oil chiller units manufactured by Tongwei have Stainless steel brazed plate type heat exchanger and Oil Tank as the evaporator

»High-quality hermetic Panasonic Brand scroll compressor

»Compact design with portable wheels

»Easy installation&operation,low-maintenance cost


How Does Oil Chiller Works?

The principle of vaporization and heat absorption of Freon in the evaporator is used for cooling.


When the oil chiller is working, the oil pump pumps oil from the oil tank in the machine to the evaporator of the oil chiller for heat exchange, and the cold oil is cooled from the cold oil.


The oil chiller takes the output and sends it back to the storage tank to mix with the hot oil.


The continuous circulation of oil reduces the temperature of the entire oil tank.


The temperature controller of the oil chiller automatically controls the opening and closing of the unit through the temperature sensor, so that the oil temperature is automatically constant at the set temperature.


What Are Types Of Oil Chillers ?

There are two types of precision oil chiller : one is Box Type Oil Chiller ,the other is Immersion oil chiller.

Box type oil chiller is built with oil pump and oil tank;

Immersion oil chiller is no built with oil pump and oil tank , it use Stainless steel coil as heat exchange.


Box Type Oil Chiller





Immersion Oil Chiller

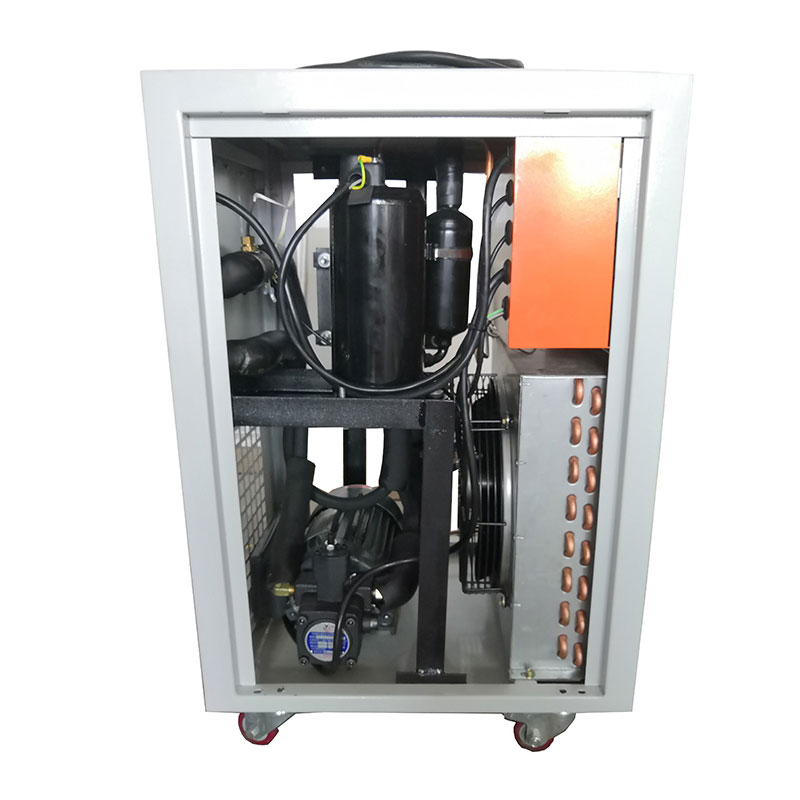

What Are The Main Components of Oil Chiller ?

5.1 Compressor

The compressor is the key mover in Oil Chiller because it produces pressure variations to stir the refrigerant around.

For 3KW chiller , which is with one unit Panasonic brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor


5.2 Evaporator

The evaporator is a crucial component of Oil chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators :304SS stainless steel plate type + Oil Tank as heat exchanger.

SS Plate + Oil Tank Evaporator


5.3 Oil Pump

The oil pump is designed to increase the pressure and the flow of the chilled oil in a closed space.

Oil Pump


5.4 Condenser

The condenser for oil chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.



Aluminum fin+fan Condenser


5.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel


Spare Part for Oil Chiller


Oil Chiller are used to cool the following oils:

Coolant oil:

Coolant oil chiller is used to maintain the temperature of the coolant, thereby maintaining the surface finish and accuracy of the parts to be machined.


Hydraulic oil:

The hydraulic oil chillers maintain the temperature of the hydraulic oil, thus maintaining its viscosity, allowing the machine tool to work smoothly.


Spindle oil:

The spindle oil chiller is used to maintain the temperature of the spindle oil and prevent the spindle from deforming, thereby improving the surface finish and accuracy of the parts.


Cutting oil:

Cutting oil chiller is used to maintain the temperature of cutting oil, thereby increasing tool life and providing better surface finish and component accuracy.


What are the Industrial Applications of 1HP Air cooled Small Hydraulic Oil Coolant Chiller?

You can use the oil chillers in different industrial chilling applications to control the cooling temperatures you want.


Here are some of the industrial applications where you will use the oil chillers.

▪ CNC Machining Centers

▪ Inner and Outer Grinding Machine Applications

▪ Electric Discharge Machine Applications

▪ Hydraulic Oil Stations and Hydraulic Machinery Applications

▪ Grinding Machine Applications

▪ Integrated Machining Applications

▪ Woodworking Industry

▪ Broaching Machine

▪ Hydraulic Machinery

▪ High-speed Lathe


Shipping Way of Oil Chiller

As a professional oil chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :


1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.


2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.


3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .


Contact Us to Learn More About Hydraulic Oil Chillers

Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with chillers. Contact us today for more information on chiller.

Our professional team will help you with any questions you have on our different kinds of chiller units. We look forward to hearing from you!
