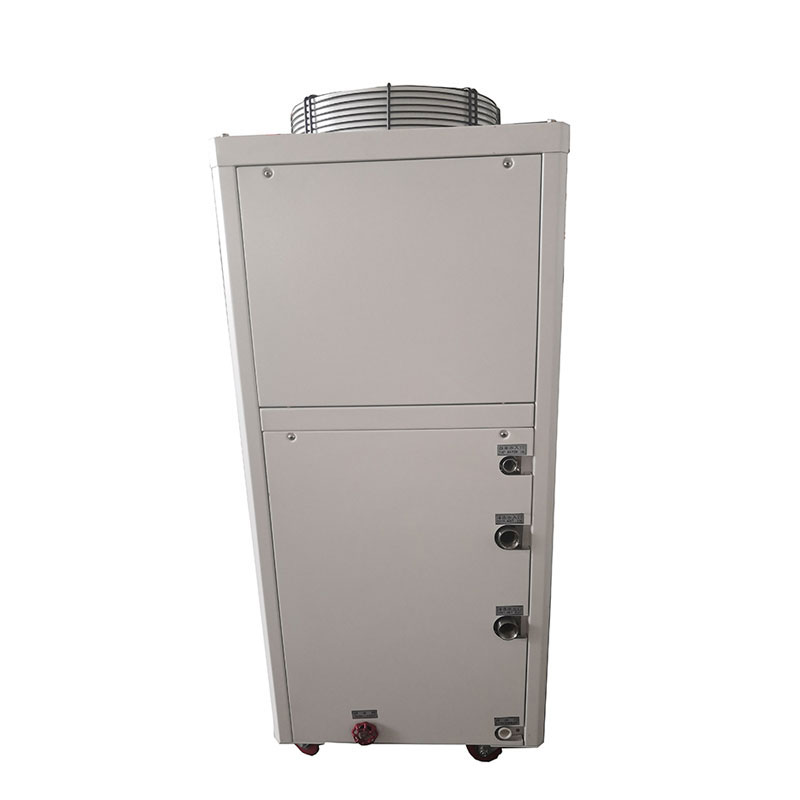

Industrial spindle oil chiller is a cooling device working on refrigeration principle and provides the cooling effect to circulates oil in a closed or open mode to discharge excess heat in the machine, allowing the spindle to work at a suitable temperature to ensure smooth operation,it relies on using fans to remove heat from outside the building rather than relying on a cooling tower. It is used to maintain temperature of spindle oil which prevents the deformation of spindle, resulting in better surface finish and accuracy of components.Industrial spindle oil chiller designed by Tongwei maintains precise oil temperature is with some essential components as Panasonic/Danfoss scroll compressor using R410A/R407C refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly.The chiller includes oil pump and stainless steel oil tank inside,PHE/Shell and tube type evaporator,microprocessor temperature controller and High/low-pressure switches.Industrial oil chiller units are widely used in CNC machine tools, Metal Cutting - Turning, Machining Centers, Grinding, Honing, Broaching, Drilling, Gear Hobbing.

Tongwei is China reliable manufacturer and supplier of industrial oil chiller .With over 15 years of refrigeration experience, we guarantee the production of the best quality chiller machine with amazing specifications, super warranty offers and best after sales service .If you are sourcing for a cost-effective industrial spindle oil chiller manufacturer and provider in China for cooling spindles in different applications,Contact us to help you choose a chiller model hat exactly matches your application with reasonable price.We are looking forwarder to work with you.

Industrial Spindle Oil Chiller Technical Specification

Features And Advantages of Industrial Spindle Oil Chiller

»Spindle oil chillers are available in wide range from 1000 kcal/hr to 30000 Kcal/hr cooling capacities and liquid oil temperature range of +25 to 40 Deg C. (Higher Temperature Models on request)

»The oil viscosity remains constant and featured by a micro temperature controller. The micro temperature controller detects changes in oil temperature from the set value and regulates it with liquid refrigerant.

»220V 50/60HZ 1PH or 208-480V 60HZ 3Phase power supply for option

» All hydraulic oil chiller units manufactured by Tongwei have Stainless steel brazed plate type heat exchanger and Oil Tank as the evaporator

»High-quality hermetic Panasonic Brand scroll compressor

»Compact design with portable wheels

»Easy installation&operation,low-maintenance cost

How Does Industrial Spindle Oil Chiller Works?

The principle of vaporization and heat absorption of Freon in the evaporator is used for cooling.

When the oil chiller is working, the oil pump pumps oil from the oil tank in the machine to the evaporator of the oil chiller for heat exchange, and the cold oil is cooled from the cold oil.

The oil chiller takes the output and sends it back to the storage tank to mix with the hot oil.

The continuous circulation of oil reduces the temperature of the entire oil tank.

The temperature controller of the oil chiller automatically controls the opening and closing of the unit through the temperature sensor, so that the oil temperature is automatically constant at the set temperature.

What Are Types Of Oil Chillers ?

There are two types of precision oil chiller : one is Box Type Oil Chiller ,the other is Immersion oil chiller .

Box type oil chiller is built with oil pump and oil tank;

Immersion oil chiller is no built with oil pump and oil tank , it use Stainless steel coil as heat exchange.

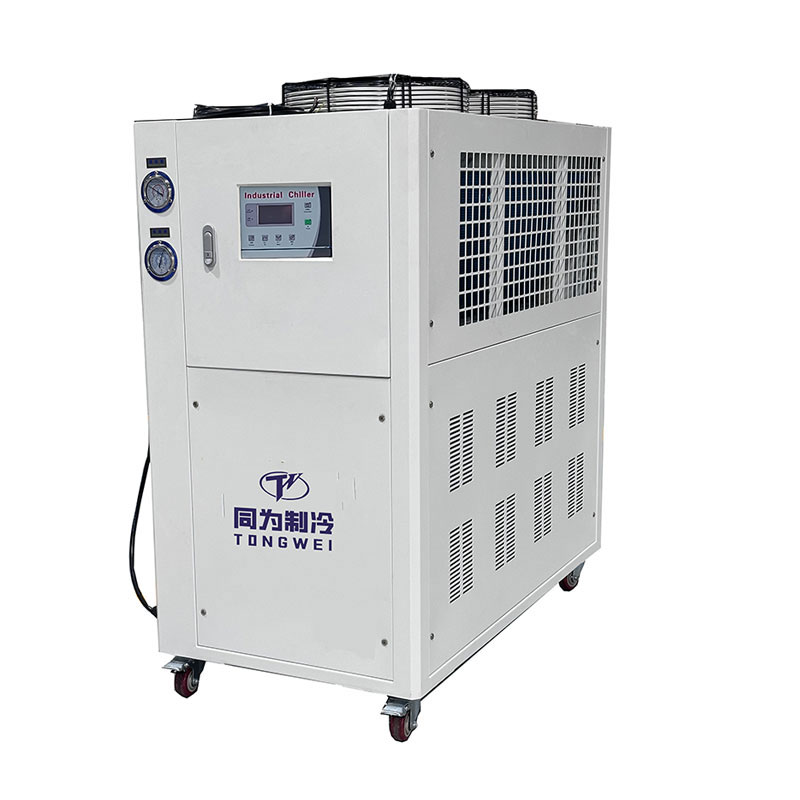

        Box Type Oil Chiller

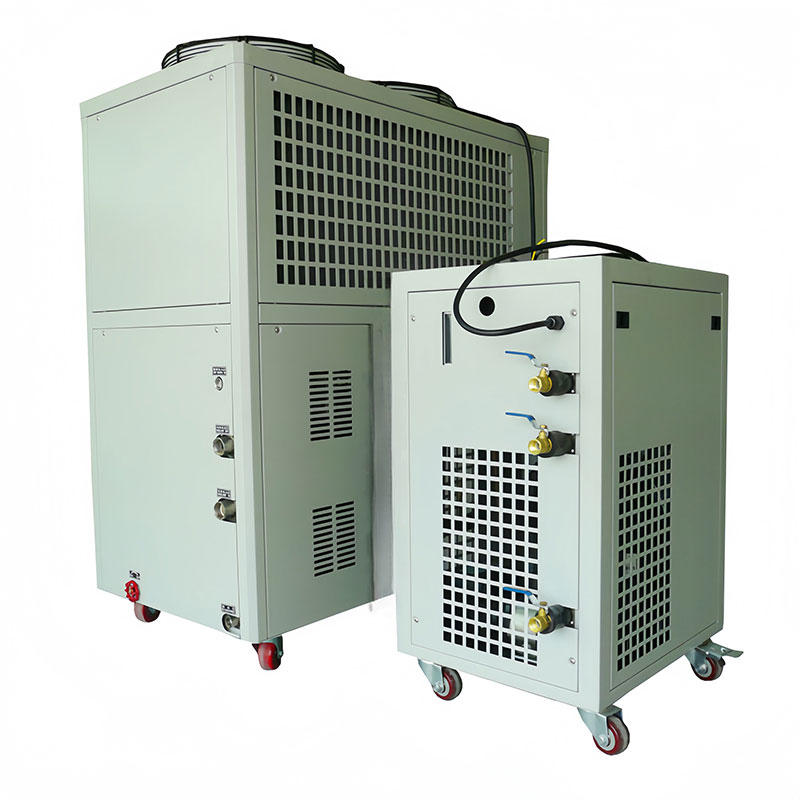

Immersion Oil Chiller

What Are The Main Components of Industrial Spindle Oil Chiller ?

5.1 Compressor

The compressor is the key mover in industrial spindle oil chiller because it produces pressure variations to stir the refrigerant around.It is with Panasonic brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor

5.2 Evaporator

The evaporator is a crucial component of Oil chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators :304SS stainless steel plate type + Oil Tank as heat exchanger.

SS Plate + Oil Tank Evaporator

5.3 Oil Pump

The oil pump is designed to increase the pressure and the flow of the chilled oil in a closed space.

Oil Pump

5.4 Condenser

The condenser for oil chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

5.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

Spare Part for Industrial Spindle Oil Chiller

Industrial Oil Chiller are used to cool the following oils:

Coolant oil:

Coolant oil chiller is used to maintain the temperature of the coolant, thereby maintaining the surface finish and accuracy of the parts to be machined.

Hydraulic oil:

The hydraulic oil chillers maintain the temperature of the hydraulic oil, thus maintaining its viscosity, allowing the machine tool to work smoothly.

Spindle oil:

The spindle oil chiller is used to maintain the temperature of the spindle oil and prevent the spindle from deforming, thereby improving the surface finish and accuracy of the parts.

Cutting oil:

Cutting oil chiller is used to maintain the temperature of cutting oil, thereby increasing tool life and providing better surface finish and component accuracy.

What are the Industrial Applications of Oil Chillers?

You can use the oil chillers in different industrial chilling applications to control the cooling temperatures you want.

Here are some of the industrial applications where you will use the oil chillers.

   ▪ CNC Machining Centers

   ▪ Inner and Outer Grinding Machine Applications

   ▪ Electric Discharge Machine Applications

   ▪ Hydraulic Oil Stations and Hydraulic Machinery Applications

   ▪ Grinding Machine Applications

   ▪ Integrated Machining Applications

   ▪ Woodworking Industry

   ▪ Broaching Machine

   ▪ Hydraulic Machinery

▪ High-speed Lathe
