Industrial Portable Chiller For Thermoforming Machine

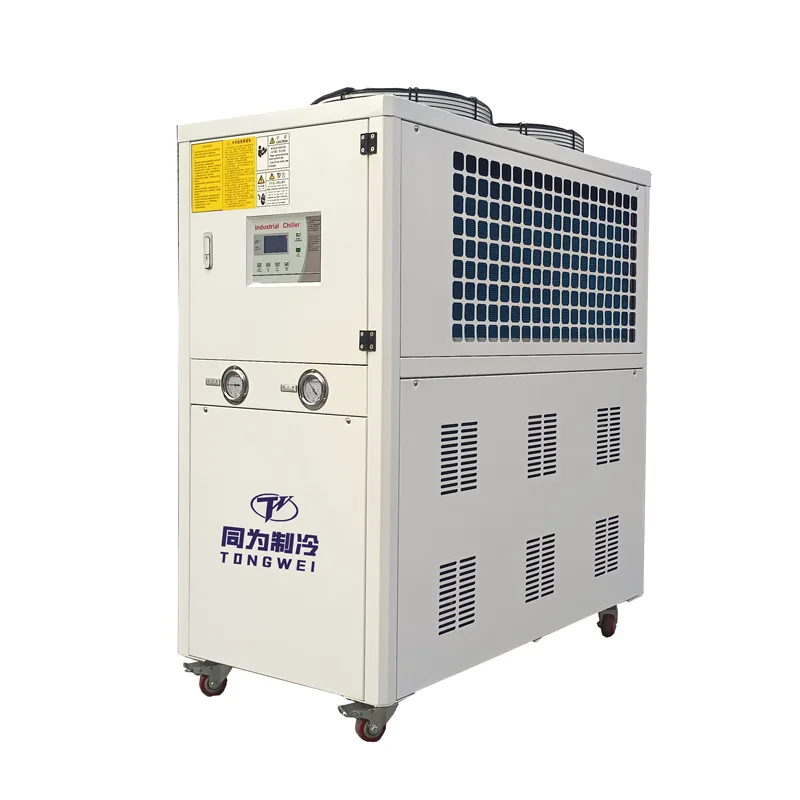

  • Industrial Portable Chiller For Thermoforming MachineIndustrial Portable Chiller For Thermoforming Machine
  • Industrial Portable Chiller For Thermoforming MachineIndustrial Portable Chiller For Thermoforming Machine
  • Industrial Portable Chiller For Thermoforming MachineIndustrial Portable Chiller For Thermoforming Machine
  • Industrial Portable Chiller For Thermoforming MachineIndustrial Portable Chiller For Thermoforming Machine
  • Industrial Portable Chiller For Thermoforming MachineIndustrial Portable Chiller For Thermoforming Machine

Industrial Portable Chiller For Thermoforming Machine

Tongwei is a professional and leading manufacturer and supplier of industrial portable chiller for thermoforming machine in China with more than 15 years experience,which offers a wide range of capacities from 1/2 tons to 60 tons chillers with environmental friendly R134A, R407C and R410A refrigerant options.Portable chillers are manufactured by Tongwei with advanced production technology, excellent quality and compact structure. They are widely used in thin sheet and thick sheet plastic thermoforming ,the temperature is precisely controlled during thermoforming, Thus greatly improved the production efficiency and product quality.Our industrial portable chillers are with CE certification and 12 months warranty, any problem caused by defects of chiller itself, service offered till the problem within warranty.Mostly standard air-cooled portable chillers are available for fast shipping, and we offer excellent after-sales technical support to ensure your system keeps your processes running strong.We look forward to becoming your long-term Industrial Portable chiller supplier in China.

Send Inquiry

Product Description


Industrial Portable Chiller For Thermoforming Machine

Industrial portable chiller for thermoforming machine is also call thermoforming chiller or thermoforming cooling system, which specially designed cooling devices used in the process industry to produce a cooling effect by releasing heat from thermoforming process.

Thermoforming chillers work by circulating coolant through the cold side of the process water system, removing excess heat from the mold and transferring the heat to the surrounding environment.When it comes to cooling your thermoforming process, quality and reliability should be your top considerations when choosing the right thermoforming chiller.


Thermoforming Chillers designed and manufactured by Tongwei is made of scroll/screw compressor, air/water-cooled condenser, stainless steel coil in water tank evaporator (shell and tube for option, power reverse phase, microprocessor, water pump, and protecting devices, etc.We can provide 1HP to 200HP industrial chillers for thermoforming machine on air cooled and water cooled as your request, they are easily to install and use, our chillers come with a wide range of cooling temperatures from 5℃ to 25℃. In addition, our customization process is the fastest on the market and can provide you with the exact specifications you require.


As a leading industrial portable chillers manufacturer and supplier in China,not only do we provide high-quality chiller machines, but we prioritize excellent customer service. A major advantage of our Tongwei, is that our customers are our top priority, which sets us apart from our competitors. Our knowledgeable team is dedicated to providing excellent customer service and your satisfaction.Some of the key benefits our team provides for your chiller include:Thoroughly unpack, clean and test each chiller system before shipping; Conduct routine quality assurance checks on every unit; Only ship brand new machines and systems to our customers;Troubleshoot and resolve problems as promptly and efficiently as possible. Contact us today to get all of these great benefits with your industrial portable  injection molding chiller. A member of our team will be happy to address any questions you may have and discuss complete technical specifications. We look forward to working with you.

Air Cooled Portable Chiller


Industrial Portable Chiller Technical Specification

TW-A series Industrial Portable Chiller Techinical Parameters
Item                   Model TW-0.5A TW-1A TW- 1.5A TW-
2A
TW
-2.5A
TW-3A TW-4A TW-5A TW- 6A TW-8AD TW-10AD TW-
12AD
TW-15AD
Cooling capacity Kcal/h
50HZ/60HZ
1419 2451 3182 4833 5848 7181 9288 11988 14534 18576 23994 29068 38270
1703 2941 3784 5800 7018 8617 11146 14386 17441 22291 28793 34882 45924
KW
50HZ/60HZ
1.65 2.85 3.7 5.62 6.8 8.35 10.8 13.94 16.9 21.6 27.9 33.8 44.5
1.98 3.42 4.4 6.74 8.2 10.02 12.96 16.73 20.28 25.92 33.48 40.56 53.4
HP 0.5HP 1HP 1.5HP 25HP 2.5HP 3HP 4HP 5HP 6HP 8HP 10HP 12HP 15HP
Ton 0.45 0.81 1.05 1.6 1.93 2.37 3.07 3.96 4.8 6.14 7.93 9.61 12.65
Input power KW 0.88 1.35 2 2.25 2.66 3.27 4.07 5.75 6.45 8.25 11.5 12.9 17.45
Max Current A 5.4 8.2 12 13.6 6.6 8.2 10.1 13.8 15.5 20 27.9 31.3 42.4
power source 1PH/3PH~220V/380V~50HZ/60HZ            3PH~380V/415V~50HZ/60HZ(3PH~200V/220V~50HZ/60HZ)
Refrigerant Type  R22/R407C/134a/404A/410A
Control Capillary/External balance thermal expansion valve
Compressor Type Hermetic Rotary/scroll Hermetic scroll ( piston )
Power(KW) 0.45 0.89 1.3 1.73 2.1 2.7 3.5 4.55 5.25 3.5×2 4.55×2 5.25×2 7×2
Condenser Type Efficient finned copper tube with aluminum + low noise external rotor fan
Air flow(m3/h) 750 1000 1500 2000 2500 3000 4000 5000 6000 8000 10000 12000 15000
Air blower(KW) 0.06 0.09 0.15 0.15 0.19 0.14×2 0.14×2 0.19×2 0.19×2 0.25×2 0.45×2 0.45×2 0.6×2
Evaporator Type Tank coil/ shell and tube type/Plate type heat exchanger
Chilled water(m3/h) 0.28 0.49 0.64 0.97 1.12 1.44 1.86 2.4 2.91 3.71 4.8 5.81 7.65
0.34 0.59 0.76 1.16 1.4 1.72 2.23 2.88 3.49 4.46 5.76 7 9.18
water tank(L) 10.6 18.3 27 27 50 50 60 60 110 120 200 200 270
inlet/outlet pipe(inch) 1/2" 1/2" 1/2" 1/2" 1" 1" 1" 1" 1" 1-1/2" 2" 2" 2"
Water pump Power(kw) 0.37 0.37 0.37 0.37 0.37 0.37 0.37 0.75 0.75 0.75 1.5 1.5 2.2
Max lift(m) 22 22 22 22 22 22 22 30 30 25 25 25 28
Max flow (m3) 5.4 5.4 5.4 5.4 5.4 5.4 5.4 8.1 8.1 8.1 13.5 13.5 25.2
Safety devices Compressor overheating protection,overcurrent protection,high and low pressure protection,overtemperature protection,traffic protection,phase sequence/phase loss protection,low level protection,anti-freezing protection.
Dimension Length(mm) 550 550 600 600 720 980 980 1150 1150 1350 1500 1500 1860
Width(mm) 350 450 500 500 550 520 520 560 560 680 760 760 850
Height(mm) 695 845 985 985 1350 1170 1170 1215 1215 1530 1660 1660 1900
Weight Kg 45 62 85 95 125 152 175 185 215 283 345 382 580
Notes:
1.Rated cooling capacity is based on: chilled water inlet and outlet water temperature 12℃/ 7℃, the cooling air inlet and outlet temperature 30℃/ 35℃
2.Scope of work: chilled water temperature range: 5℃to 35℃; chilled water inlet and outlet temperature difference: 3℃to 8℃.
The ambient temperature of condensation: Not higher than 35℃(non-standard chiller ambient temperature of condensation can reach maximum 55℃, need to order production).


TW-A Series Industrial Portable Chiller Techinical Parameters
Item                 Model TW-15AT TW-20AD TW-20AF TW-25AD TW-25AF TW-30AD TW-30AT TW-40AD TW-40AF TW-50AD TW-50AF TW-60AD
Cooling capacity Kcal/h
50HZ/60HZ
36120 49966 47988 58480 58136 74734 74922 98040 99760 119024 116960 144996
43344 59959 57586 70176 69763 89681 89990 117648 119712 142829 140352 173995
KW
50HZ/60HZ
42 58.1 55.8 68 67.6 86.9 87.2 114 116 138.4 136 168.6
50.4 69.72 66.96 81.6 81.12 104.28 104.64 136.8 139.2 166.08 163.2 202.3
HP 15HP 20HP 20HP 25HP 25HP 30HP 30HP 40HP 40HP 50HP 50HP 60HP
Ton 11.94 16.52 15.9 19.33 19.26 24.71 24.79 32.41 32.98 39.35 38.67 47.94
Input power KW 17.1 21.73 22 25.4 24.8 33.39 33.1 44.91 43.3 57.3 54 65
Max Current A 43.2 52.7 53.3 63.7 61.3 81 80.2 109 106 135.5 128.5 135
power source 3PH~380V/415V~50HZ/60HZ(3PH~200V/220V~50HZ/60HZ)
Refrigerant Type  R22/R407C/134a/404A/410A
Control  Capillary/External balance thermal expansion valve
Compressor Type Hermetic scroll ( piston )
Power(KW) 4.55×3 8.96×2 4.55×4 10.8×2 5.25×4 13.62×2 8.96×3 18.78×2 8.96×4 23.6×2 10.8×4 27.4×2
Condenser Type Efficient finned copper tube with aluminum + low noise external rotor fan
Air flow(m3/h) 15000 20000 20000 25000 25000 30000 30000 40000 40000 50000 50000 60000
Air blower(KW) 0.6×2 0.78×2 0.78×2 0.78×2 0.78×2 0.42×6 0.42×6 0.6×6 0.6×6 0.78×6 0.78×6 0.78×6
Evaporator Type Tank coil/ shell and tube type/Plate type heat exchanger
Chilled water(m3/h) 7.22 10 9.6 11.69 11.62 14.94 15 19.6 19.95 23.8 23.4 29
8.67 11.99 11.51 14.03 13.95 17.93 18 23.52 23.94 28.6 28.1 34.8
water tank(L) 270 350 350 350 350 420 420 580 580 580 580 580
inlet/outlet pipe(inch) 2" 2" 2" 2-1/2" 2-1/2" 2-1/2" 2-1/2" 3" 3" 3″ 3″ 3″
Water pump Power(kw) 2.2 2.2 2.2 2.2 2.2 4 4 4 4 5.5 5.5 5.5
Max lift(m) 28 28 28 28 28 30 30 30 30 32 32 32
Max flow (m3) 25.2 25.2 25.2 25.2 25.2 36 36 36 36 40 40 40
Safety devices Compressor overheating protection,overcurrent protection,high and low pressure protection,overtemperature protection,traffic protection,phase sequence/phase loss protection,low level protection,anti-freezing protection.
Dimension Length(mm) 1860 2020 2020 2020 2020 2200 2200 2350 2350 2600 2600 2600
Width(mm) 850 950 950 950 950 1150 1150 1350 1350 1500 1500 1500
Height(mm) 1900 2000 2000 2000 2000 1980 1980 2000 2000 2100 2100 2100
Weight Kg 580 650 650 810 810 890 890 1112 1112 1320 1320 1320
Notes:
1.Rated cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, the cooling air inlet and outlet temperature 30 ℃ / 35 ℃
2.Scope of work: chilled water temperature range: 5 ℃ to 35 ℃; chilled water inlet and outlet temperature difference: 3 ℃ to 8 ℃.
The ambient temperature of condensation: Not higher than 35 ℃ (non-standard chiller ambient temperature of condensation can reach maximum 55 ℃, need to order production).


Features And Advantages of Industrial Portable Chiller For Thermoforming Machine

 ▪ Cooling capacity from 2KW to 1000KW on air-cooled and water-cooled thermoforming chiller

 ▪ The compressor is a high-quality scroll /screw that is completely reliable and energy-saving.

 ▪Thermoforming chiller built with a stainless steel water tank, which is an open device. Due to being the open type, it is much easier to maintain and clean

 ▪ Brazed plate/shell and tube heat exchanger for option

 ▪ Each compressor has a separate refrigeration circuit.

 ▪ Environmentally friendly refrigerants such as R134A, R407C, R410A are used. They will ensure high cooling efficiency with every chiller for injection molding machine .

▪ It is having the integration of all the standard equipment like high pressure pump, iron pump, stainless pump to process the various specific application.

 ▪ Simple&easy installation low maintenance cost



What Are The Main Components Of Industrial Portable Chiller?

3.1 Compressor

The compressor is the key mover in industrial portable chiller because it produces pressure variations to stir the refrigerant around.

From 2 ton to 50 ton inudstrial portable chiller , which is with Panasonic /Danfoss brand scroll compressor, using R410A/R407C/R134a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor


Danfoss Compressor


3.2 Evaporator

The evaporator is a crucial component of portable chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : stainless steel coil in water tank evaporator , 304SS stainless steel plate type evaporator,shell and tube evaporator.

Coil in SS Water Tank Evaporator


SS Plate Type+ Water Tank Evaporator


Shell and Tube Evaporator


3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space,and we use stainless steel material water pump for laboratory chillers.

Water Pump


3.4 Condenser

The condenser for portable air-cooled thermoforming chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.



Aluminum fin+fan Condenser


3.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel


Spare Part for Industrial Portable thermoforming Chiller


What Types of Chillers are Used for Thermoforming Machine?

There are TWO main types of chillers that are used for thermoforming machine: air-cooled and water-cooled. The choice of chiller type depends on a number of factors, including the size and shape of the thermoforming machine, the climate where it will be located,installation ways and the electrical power available


✸ Air-cooled thermoforming chillers use ambient air to dissipate heat from the thermoforming processes. They are energy-efficient, space-saving, and less maintenance that helps save money.

Air-cooled thermoforming Chiller


✸ Water-cooled thermoforming chillers use water from an external water cooling tower to dissipate heat from the thermoforming processes. These systems are longer lifespan, Relatively quiet, and more consistent cooling performance than the air-cooled thermoforming chiller.

Water-cooled thermoforming Chiller


Should you choose an air-cooled or water-cooled thermoforming chiller? Contact Us for help determining the best solution for you.


What Are the Differences Between Thermoforming Scroll Chiller and Thermoforming Screw Chiller?

Thermoforming Scroll Chiller                        Thermoforming Screw Chiller

▪1/2HP-60HP                                                    Above 60HP

▪ Danfoss/Panasonic Scroll Compressor               Hanbell/Bitzer Screw compressor

▪Built with water tank and water pump                Without water tank and water pump



Air-cooled Film Thermoforming Chiller


Air-cooled Thermoforming Screw Chiller





Water-cooled Thermoforming Scroll Chiller


Water-cooled Thermoforming Screw Chiller


How I Can Choose The Right Industrial Portable Chiller For Thermoforming Machine?

There are SIX important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.


7.1 Calculate Right Cooling Capacity For Chiller

Chiller sizes are traditionally listed according to Ton,KW, But/h,Kcal/h. Tons does not refer to the actual weight of the chiller, but instead is a historical reference to a time when blocks of ice were harvested for cooling. Just like engines are still measured according to “horsepower”, the term “tons of refrigeration” stuck around:

1 KW=860 kcal/h ;

1 TON=3.517 KW;

1 KW=3412 Btu/h;


▷ pls tell us the production for your thermoforming machine;

▷ how many degree of outlet water temperature from the chiller you request ;


7.2 Types of Thermoforming chiller system?

There are two types of chiller :Air Cooled Thermoforming Chiller and Water Cooled Thermoforming Chiller.

Water cooled chiller needs a separated water cooling tower and water cooling pump ,if you don‘t have existing water cooling tower,we suggest you use air cooled chiller; But if your ambient temperature is very high above 55℃ ,we suggest you use water cooled chiller , as it is easier to dissipate heat for water cooled chiller with water cooling tower.

But Most customers use air cooled MRI chiller ,which is more easily install and save space.


7.3 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on


7.4 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.


7.5 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.


7.6 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator with buffer tank.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

But it has a limited capacity and is not suitable for applications with larger chilled water demands.External tank’s capacity can be customized according to specific needs.

It can buffer a larger heat load, store more chilled water, but the installation will be more troublesome.


Shipping Way of Industrial Portable Chillers

As a professional portable chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :


1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.


2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.


3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .


Why should you choose Tongwei for your industrial protable chiller supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.


▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.


▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.


▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
